Specifications
| A | 630mm |
|---|---|
| B | 2-1/4" |
| C | 36" |
| D | 16" |
| E | 2-3/8" |
| F | 9.84" |
| Weight (lb) | 1510 |

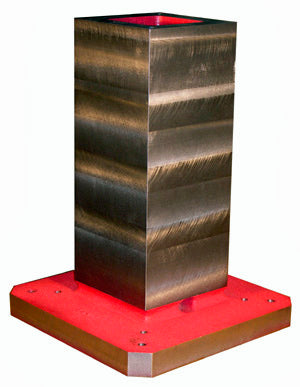

The Suburban Tool TSC-6301636 square column tombstone is a 630mm-class, 36" tall pallet fixture built to give horizontal machining centers a rigid, four-sided platform for mounting vises, fixtures, and sub-plates. The one-piece, stress-relieved casting maximizes parts per cycle while holding tight geometry.
- Made from one-piece, class 40 cast iron that has been stress-relieved.
- Base and sides milled flat, square & square within 0.001" in 12" for precise workholding.
- DIN mounting standard, with JIS mounting optional.
- Drilled and tapped 5/8"-11 lifting holes on top and coolant drain holes at the base of the column.
- Ships plain milled or custom machined to your hole pattern from Suburban Tool's stocked castings.
- Made in the USA by Suburban Tool
- Other materials available on request.
- Regular price
- $9,026.00
Specifications
| A | 630mm |
|---|---|
| B | 2-1/4" |
| C | 36" |
| D | 16" |
| E | 2-3/8" |
| F | 9.84" |
| Weight (lb) | 1510 |
The Suburban Tool TSC-6301636 square column tombstone is a 630mm-class, 36" tall pallet fixture built to give horizontal machining centers a rigid, four-sided platform for mounting vises, fixtures, and sub-plates. The one-piece, stress-relieved casting maximizes parts per cycle while holding tight geometry.
- Made from one-piece, class 40 cast iron that has been stress-relieved.
- Base and sides milled flat, square & square within 0.001" in 12" for precise workholding.
- DIN mounting standard, with JIS mounting optional.
- Drilled and tapped 5/8"-11 lifting holes on top and coolant drain holes at the base of the column.
- Ships plain milled or custom machined to your hole pattern from Suburban Tool's stocked castings.
- Made in the USA by Suburban Tool
- Other materials available on request.
Contact for Pricing
