Index Fixtures

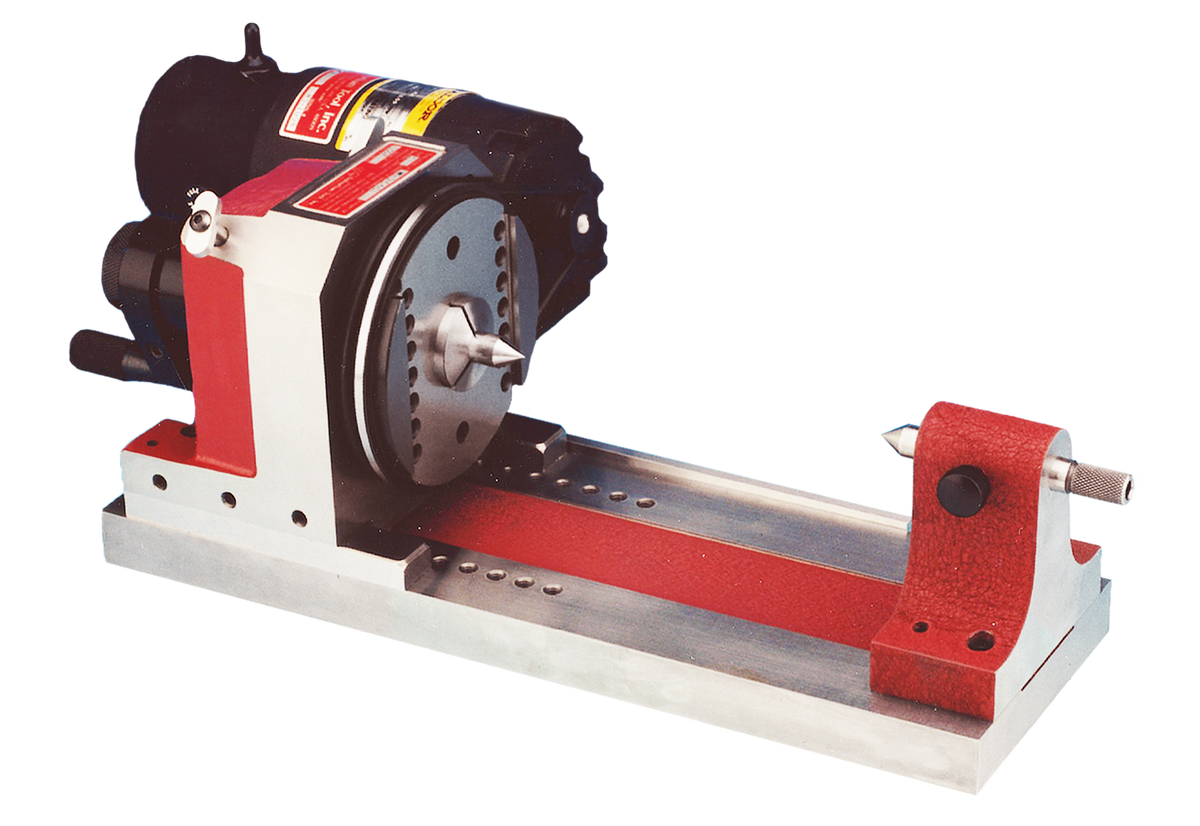

The Suburban Tool Master-Grind base and tailstock is a precision index fixture system for holding and rotating work between centers during grinding and inspection. Factory pre-fitted assemblies, V-block and 5C collet capabilities, and an optional motor drive kit make it a flexible setup for accurate cylindrical and indexed grinding.Machinists, tool & die makers, and QC/inspection teams use the Master-Grind to index parts to exact positions and grind concentric features between centers. The modular components let you build the configuration your job needs. Made in USA. Index fixture base and tailstock for work between centers V-block and 5C collet holding options Optional motor drive kit for powered rotation Made in USA by Suburban Tool Videos An Inside Look at a Suburban Tool Master-Grind Spin & Index Fixture Master-Grind Index Fixture - An Overview How to set up a Master-Grind spin index fixture for small angles.

The Suburban Tool Collet-Master™ spin and index fixture holds 5C collet work for precise spinning and indexing during grinding, milling, and inspection. With 48 index positions, it lets machinists lock parts at exact angular increments for flats, slots, and radial features with repeatable accuracy.Made in the USA, the Collet-Master is built for tool & die makers, grinding shops, and QC inspectors who need dependable rotary positioning of round parts. It accepts the full range of 5C collets for versatile workholding. 5C spin and index fixture with 48 positions Precise angular indexing for grinding and milling Accepts the full 5C collet range Made in USA precision by Suburban Tool

The Suburban Tool Spin-Master™ spin and index fixture is a precision grinding and inspection fixture that accepts all 5C collets for holding round, hex and square work. It lets tool & die makers and machinists spin parts for concentric grinding and index accurately for angular features on the surface grinder.Made in the USA, the Master-Grind design delivers repeatable positioning and rigid workholding for grinding, setup and QC inspection. When shops need a versatile 5C spin and index fixture they can rely on, Suburban Tool is the trusted source. Spin and index fixture accepting all 5C collets Spins for concentric grinding, indexes for angular work Master-Grind construction for repeatable accuracy Made in the USA by Suburban Tool

The Suburban Tool Mini-Master spin and index fixture gives machinists and tool & die makers a compact, accurate way to hold, rotate, and index round and profiled work for grinding, inspection, and light machining. Its collet-based design keeps parts concentric for precise, repeatable results.This Made in USA fixture uses ER-25 collets for versatile workholding across a range of small-diameter parts. Master-Grind spin and index fixture Accepts the full range of ER-25 collets Ideal for grinding, inspection, and setup work Compact design for surface grinders and benches Suburban Tool builds the Mini-Master for the accuracy and rigidity that precision spin and index work requires.

The Punch Master™ spin and index fixture from Suburban Tool is a precision grinding and inspection fixture built for tool & die makers, mold shops and machinists who need repeatable indexing when spinning, grinding and setting up work. Its rugged Master-Grind design holds parts securely for accurate angular positioning on the surface grinder or bench.Made in the USA, this fixture pairs the reliability shops expect from Suburban Tool with the versatility needed for punch, die and collet work. It is ideal for grinding, QC and inspection setups where dead-on indexing matters. Precision spin and index fixture for grinding and setup Master-Grind construction for repeatable angular positioning Built for tool & die, mold and machine shops Proudly Made in the USA by Suburban Tool
