Specifications
| A | 630mm |
|---|---|
| B | 2-1/4" |
| C | 36" |
| D | 14" |
| E | 2-1/4" |
| F | 9.84" |
| Weight (lb) | 1267 |

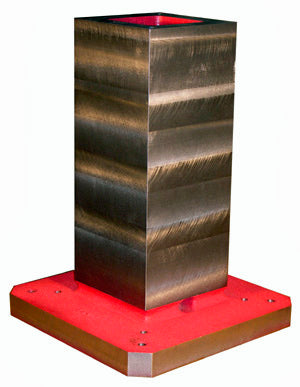

The Suburban Tool TSC-6301436 square column tombstone is a 630mm-class, 36" tall pallet fixture engineered as a solid base for mounting vises, fixtures, and sub-plates on horizontal machining centers. Its one-piece, stress-relieved casting keeps parts square through demanding production cycles.
- Made from one-piece, class 40 cast iron that has been stress-relieved for stability.
- Base and sides milled flat, square & square within 0.001" in 12".
- DIN mounting standard, with JIS mounting optional.
- Drilled and tapped 5/8"-11 lifting holes in the top surface and coolant drain holes at the base of the column.
- Available plain milled or custom made with your own hole pattern from a large stock of standard Suburban Tool castings.
- Made in the USA by Suburban Tool
- Other materials available on request.
- Regular price
- $8,684.00
Specifications
| A | 630mm |
|---|---|
| B | 2-1/4" |
| C | 36" |
| D | 14" |
| E | 2-1/4" |
| F | 9.84" |
| Weight (lb) | 1267 |
The Suburban Tool TSC-6301436 square column tombstone is a 630mm-class, 36" tall pallet fixture engineered as a solid base for mounting vises, fixtures, and sub-plates on horizontal machining centers. Its one-piece, stress-relieved casting keeps parts square through demanding production cycles.
- Made from one-piece, class 40 cast iron that has been stress-relieved for stability.
- Base and sides milled flat, square & square within 0.001" in 12".
- DIN mounting standard, with JIS mounting optional.
- Drilled and tapped 5/8"-11 lifting holes in the top surface and coolant drain holes at the base of the column.
- Available plain milled or custom made with your own hole pattern from a large stock of standard Suburban Tool castings.
- Made in the USA by Suburban Tool
- Other materials available on request.
Contact for Pricing
