Specifications
| A | 630mm |
|---|---|
| B | 2-1/4" |
| C | 36" |
| D | 12" |
| E | 2-1/4" |
| F | 9.84" |
| Weight (lb) | 1110 |

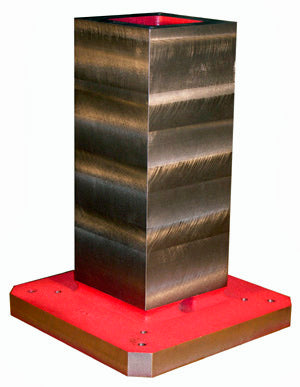

The Suburban Tool TSC-6301236 square column tombstone is a 630mm-class, 36" tall pallet fixture that gives horizontal machining centers a rigid, four-sided base for mounting vises, fixtures, and sub-plates. Cast and stress-relieved as one piece, it holds its geometry through heavy multi-part production runs.
- Made from one-piece, class 40 cast iron that has been stress-relieved for lasting dimensional stability.
- Base and sides milled flat, square & square within 0.001" in 12" for accurate workholding.
- DIN mounting standard, with JIS mounting optional to match your pallet system.
- Drilled and tapped 5/8"-11 lifting holes up top plus coolant drain holes at the base of the column.
- Ships plain milled or custom machined to your own hole pattern from Suburban Tool's in-stock castings.
- Made in the USA by Suburban Tool
- Other materials available on request.
- Regular price
- $6,911.00
Specifications
| A | 630mm |
|---|---|
| B | 2-1/4" |
| C | 36" |
| D | 12" |
| E | 2-1/4" |
| F | 9.84" |
| Weight (lb) | 1110 |
The Suburban Tool TSC-6301236 square column tombstone is a 630mm-class, 36" tall pallet fixture that gives horizontal machining centers a rigid, four-sided base for mounting vises, fixtures, and sub-plates. Cast and stress-relieved as one piece, it holds its geometry through heavy multi-part production runs.
- Made from one-piece, class 40 cast iron that has been stress-relieved for lasting dimensional stability.
- Base and sides milled flat, square & square within 0.001" in 12" for accurate workholding.
- DIN mounting standard, with JIS mounting optional to match your pallet system.
- Drilled and tapped 5/8"-11 lifting holes up top plus coolant drain holes at the base of the column.
- Ships plain milled or custom machined to your own hole pattern from Suburban Tool's in-stock castings.
- Made in the USA by Suburban Tool
- Other materials available on request.
Contact for Pricing
