Specifications
| A | 630mm |
|---|---|
| B | 2-1/4" |
| C | 28-1/2" |
| D | 15-3/4" |
| E | 2-1/4" |
| F | 9.84" |
| Weight (lb) | 1180 |

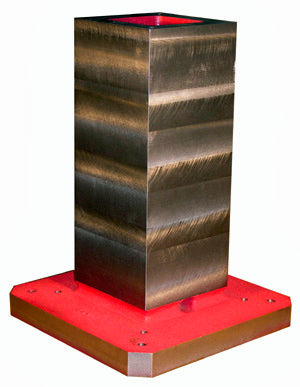

The Suburban Tool TSC-6 is a square column tombstone built on a 630mm-class column and standing 28-1/2" tall, a robust, one-piece base sized for the heaviest vises, fixtures, and sub-plates in horizontal machining. Suburban Tool, Inc. keeps a large number of standard-size castings in stock, ready to machine to your workholding fixture needs.
- One-piece, stress-relieved class 40 cast iron for maximum rigidity
- Base and sides milled flat, square & square within 0.001" in 12"
- DIN mounting standard, JIS mounting optional
- 5/8"-11 tapped lifting holes up top and coolant drain holes at the base
- Available plain-milled or custom-machined to your own hole pattern
- Made in the USA by Suburban Tool
- Other materials available on request.
- Regular price
- $7,635.00
Specifications
| A | 630mm |
|---|---|
| B | 2-1/4" |
| C | 28-1/2" |
| D | 15-3/4" |
| E | 2-1/4" |
| F | 9.84" |
| Weight (lb) | 1180 |
The Suburban Tool TSC-6 is a square column tombstone built on a 630mm-class column and standing 28-1/2" tall, a robust, one-piece base sized for the heaviest vises, fixtures, and sub-plates in horizontal machining. Suburban Tool, Inc. keeps a large number of standard-size castings in stock, ready to machine to your workholding fixture needs.
- One-piece, stress-relieved class 40 cast iron for maximum rigidity
- Base and sides milled flat, square & square within 0.001" in 12"
- DIN mounting standard, JIS mounting optional
- 5/8"-11 tapped lifting holes up top and coolant drain holes at the base
- Available plain-milled or custom-machined to your own hole pattern
- Made in the USA by Suburban Tool
- Other materials available on request.
Contact for Pricing
