Specifications
| A | 500mm |
|---|---|
| B | 2" |
| C | 36" |
| D | 10" |
| E | 1-1/2" |
| F | 7.87" |
| Weight (lb) | 804 |

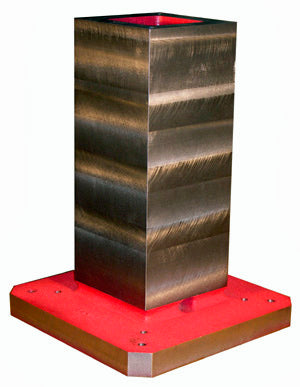

The Suburban Tool TSC-5001036 is a square column tombstone built on a 500mm-class column and standing 36" tall, delivering ample vertical capacity for mounting vises, fixtures, and sub-plates in horizontal machining. Suburban Tool, Inc. keeps a large number of standard-size castings in stock, ready to machine to your workholding fixture needs.
- One-piece, stress-relieved class 40 cast iron for dimensional stability
- Base and sides milled flat, square & square within 0.001" in 12"
- DIN mounting standard, with optional JIS mounting
- Tapped 5/8"-11 lifting holes and coolant drain holes at the column base
- Order plain-milled or customized with your own hole pattern
- Made in the USA by Suburban Tool
- Other materials available on request.
- Regular price
- $5,402.00
Specifications
| A | 500mm |
|---|---|
| B | 2" |
| C | 36" |
| D | 10" |
| E | 1-1/2" |
| F | 7.87" |
| Weight (lb) | 804 |
The Suburban Tool TSC-5001036 is a square column tombstone built on a 500mm-class column and standing 36" tall, delivering ample vertical capacity for mounting vises, fixtures, and sub-plates in horizontal machining. Suburban Tool, Inc. keeps a large number of standard-size castings in stock, ready to machine to your workholding fixture needs.
- One-piece, stress-relieved class 40 cast iron for dimensional stability
- Base and sides milled flat, square & square within 0.001" in 12"
- DIN mounting standard, with optional JIS mounting
- Tapped 5/8"-11 lifting holes and coolant drain holes at the column base
- Order plain-milled or customized with your own hole pattern
- Made in the USA by Suburban Tool
- Other materials available on request.
Contact for Pricing
