Specifications
| A | 400mm |
|---|---|
| B | 1-3/4" |
| C | 36" |
| D | 10" |
| E | 1-1/2" |
| F | 6.30" |
| Weight (lb) | 565 |

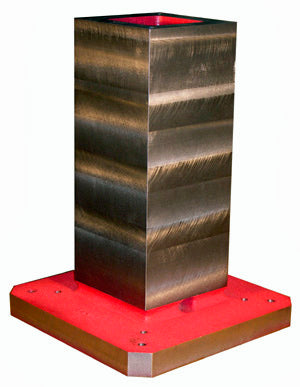

The Suburban Tool TSC-4001036 is a square column tombstone built on a 400mm-class column and standing 36" tall, giving you extended vertical real estate for stacking vises, fixtures, or sub-plates in horizontal machining. Suburban Tool, Inc. keeps a large number of standard-size castings in stock, ready to machine to your workholding fixture needs.
- One-piece, stress-relieved class 40 cast iron for dependable stability
- Base and sides milled flat, square & square within 0.001" in 12"
- DIN mounting standard, with optional JIS mounting
- 5/8"-11 tapped lifting holes up top and coolant drain holes at the base
- Order plain-milled or custom-machined with your own hole pattern
- Made in the USA by Suburban Tool
- Other materials available on request.
- Regular price
- $5,139.00
Specifications
| A | 400mm |
|---|---|
| B | 1-3/4" |
| C | 36" |
| D | 10" |
| E | 1-1/2" |
| F | 6.30" |
| Weight (lb) | 565 |
The Suburban Tool TSC-4001036 is a square column tombstone built on a 400mm-class column and standing 36" tall, giving you extended vertical real estate for stacking vises, fixtures, or sub-plates in horizontal machining. Suburban Tool, Inc. keeps a large number of standard-size castings in stock, ready to machine to your workholding fixture needs.
- One-piece, stress-relieved class 40 cast iron for dependable stability
- Base and sides milled flat, square & square within 0.001" in 12"
- DIN mounting standard, with optional JIS mounting
- 5/8"-11 tapped lifting holes up top and coolant drain holes at the base
- Order plain-milled or custom-machined with your own hole pattern
- Made in the USA by Suburban Tool
- Other materials available on request.
Contact for Pricing
