Specifications
| A | 400mm |
|---|---|
| B | 1-3/4" |
| C | 26" |
| D | 10" |
| E | 1-1/2" |
| F | 6.30" |
| Weight (lb) | 440 |

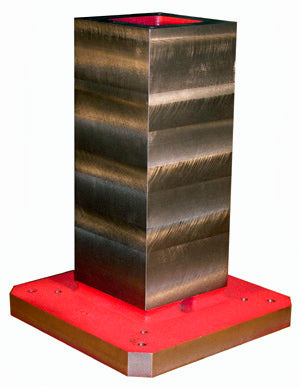

The Suburban Tool TSC-2 is a square column tombstone on a 400mm-class column standing 26" tall, delivering a solid, one-piece platform for mounting vises, fixtures, and sub-plates in horizontal machining. Suburban Tool, Inc. keeps a large number of standard-size castings in stock, ready to machine to your workholding fixture needs.
- Made from one-piece, stress-relieved class 40 cast iron for stability
- Base and sides milled flat, square & square within 0.001" in 12"
- DIN mounting standard, JIS mounting optional
- Drilled and tapped 5/8"-11 lifting holes on top with coolant drain holes at the base
- Order plain-milled or customized with your own hole pattern
- Made in the USA by Suburban Tool
- Other materials available on request.
- Regular price
- $4,637.00
Specifications
| A | 400mm |
|---|---|
| B | 1-3/4" |
| C | 26" |
| D | 10" |
| E | 1-1/2" |
| F | 6.30" |
| Weight (lb) | 440 |
The Suburban Tool TSC-2 is a square column tombstone on a 400mm-class column standing 26" tall, delivering a solid, one-piece platform for mounting vises, fixtures, and sub-plates in horizontal machining. Suburban Tool, Inc. keeps a large number of standard-size castings in stock, ready to machine to your workholding fixture needs.
- Made from one-piece, stress-relieved class 40 cast iron for stability
- Base and sides milled flat, square & square within 0.001" in 12"
- DIN mounting standard, JIS mounting optional
- Drilled and tapped 5/8"-11 lifting holes on top with coolant drain holes at the base
- Order plain-milled or customized with your own hole pattern
- Made in the USA by Suburban Tool
- Other materials available on request.
Contact for Pricing
