Specifications
| SineSet ® SERIES | S1 |
|---|---|
| L | 7-1/2" |
| W | 3" |
| H | 3-5/8" |
| J | 1-5/16" |
| JAW CAPACITY | 4-3/4" |
| C | 5" ±0.0002" |
| SQUARE & PARALLEL | 0.0002" |
| Weight (lb) | 16 |

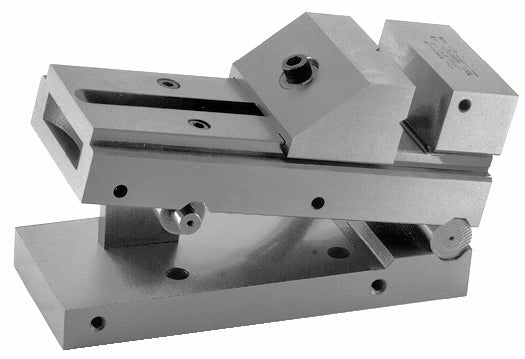

The Suburban Tool SV-337-S1 sine vise provides 4-3/4" of jaw capacity for holding a workpiece at a precise angle for machining or inspection, with an angled center channel that adds extra holding capacity. The movable jaw pulls into the base at 45 to 60° to maximize hold-down force and eliminate tilting and lifting.
Hardened from steel to Rc 58-60, this S1-series vise bolts directly to a SineSet sine plate or compound sine plate of the same series, and also bolts to the AP-664-S1 90° conversion plate for versatile setups. Small horizontal and vertical vees in the movable jaw plus a ratchet mechanism with notched pockets and a one-piece drawbar keep work secure.
- 4-3/4" jaw capacity with an angled center channel for extra holding capacity
- SineSet S1 model bolts to a matching sine or compound sine plate, plus the AP-664-S1 90° conversion plate
- Steel hardened to Rc 58-60 for durability
- Movable jaw draws into the base at 45 to 60° to prevent tilting and lifting
- Dual 0.200" minute steps set small angles with standard gage blocks
- One locking strap included
- Made in the USA by Suburban Tool
- Solid, one-piece body.
- Dual 0.200" minute steps built into the gage roll allow setting small angles with standard gage blocks.
- One locking strap included with each sine vise.
Available with No Certification, Short Form, or Long Form Certification.
Specifications
| SineSet ® SERIES | S1 |
|---|---|
| L | 7-1/2" |
| W | 3" |
| H | 3-5/8" |
| J | 1-5/16" |
| JAW CAPACITY | 4-3/4" |
| C | 5" ±0.0002" |
| SQUARE & PARALLEL | 0.0002" |
| Weight (lb) | 16 |
The Suburban Tool SV-337-S1 sine vise provides 4-3/4" of jaw capacity for holding a workpiece at a precise angle for machining or inspection, with an angled center channel that adds extra holding capacity. The movable jaw pulls into the base at 45 to 60° to maximize hold-down force and eliminate tilting and lifting.
Hardened from steel to Rc 58-60, this S1-series vise bolts directly to a SineSet sine plate or compound sine plate of the same series, and also bolts to the AP-664-S1 90° conversion plate for versatile setups. Small horizontal and vertical vees in the movable jaw plus a ratchet mechanism with notched pockets and a one-piece drawbar keep work secure.
- 4-3/4" jaw capacity with an angled center channel for extra holding capacity
- SineSet S1 model bolts to a matching sine or compound sine plate, plus the AP-664-S1 90° conversion plate
- Steel hardened to Rc 58-60 for durability
- Movable jaw draws into the base at 45 to 60° to prevent tilting and lifting
- Dual 0.200" minute steps set small angles with standard gage blocks
- One locking strap included
- Made in the USA by Suburban Tool
- Solid, one-piece body.
- Dual 0.200" minute steps built into the gage roll allow setting small angles with standard gage blocks.
- One locking strap included with each sine vise.
Available with No Certification, Short Form, or Long Form Certification.
- Regular price
- $1,527.75
