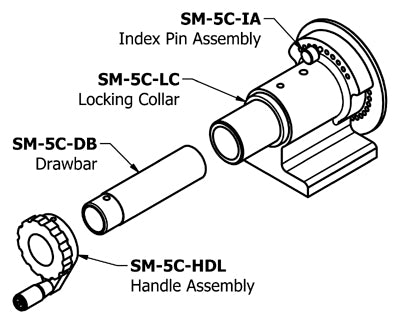

files/RP-SM-5C_d4c5ae62-853f-44f0-acfd-00515627f595.jpg
Specifications
| COLLET CAPACITY | ALL 5C |
|---|---|
| THROUGH HOLE | 1-1/4" |
| C | 2-3/4" |
| H | 5-1/4" |
| L1 | 9-11/16" |
| L2 | 3-7/8" |
| W1 | 4-3/8" |
| W2 | 5" |
| SQUARE & PARALLEL | 0.0002" |
| Weight (lb) | 15 |
The Suburban Tool SM-5C Spin-Master Index Fixture is a 5C spin fixture built for cutter and flute grinding, accepting all standard 5C collets with a 1-1/4" through hole and 2-5/16" of spindle travel for clearing flutes.
Its index plate carries 36 holes for direct indexing in 10-degree steps and is marked in 5-degree increments, while 10 vernier holes provide 1-degree indexing for the angles in between. The hardened and ground spindle rides in a sleeve bearing for a maximum runout of 0.0005" T.I.R.
- Accepts all standard 5C collets
- 2-5/16" spindle travel for flute grinding
- 36-hole plate: 10° direct indexing, marked in 5° steps
- 10 vernier holes provide 1° indexing
- Hardened, ground spindle in a sleeve bearing
- Maximum runout 0.0005" T.I.R.
- Made in the USA by Suburban Tool
- Regular price
- $1,398.60
