Specifications
| V-BLOCK CAPACITY | 1-5/8" |
|---|---|
| THROUGH HOLE | 1-1/4" |
| C | 3" |
| L1 | 2-3/4" |
| L2 | 6-15/16" |
| W | 4" |
| H | 5" |
| SQUARE & PARALLEL | 0.0002" |
| Weight (lb) | 12 |

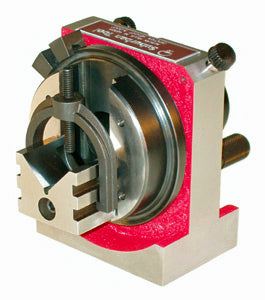

The Suburban Tool PM-V2 Master-Grind Index Fixture is a Punch Master spin fixture built for precision punch and die work, with a 1-5/8" V-block capacity and a 1-1/4" through hole for feeding longer parts. It's the toolmaker's answer to indexing flats, hexes, and forms with confidence.
A 48-position index plate delivers a hard index every 7-1/2 degrees, while a built-in sine bar sets any angle in between. The ball-and-race design runs 36 balls under preload for minimum deflection, the bearings are sealed against grit, and maximum spindle runout is held to ±0.0001".
- 48-position hard index every 7-1/2 degrees
- Built-in sine bar for angles between index stops
- 36 balls under preload for minimal deflection
- Sealed bearings keep grit out
- Maximum spindle runout ±0.0001"
- Made in the USA by Suburban Tool
- Fitted wooden case included.
Specifications
| V-BLOCK CAPACITY | 1-5/8" |
|---|---|
| THROUGH HOLE | 1-1/4" |
| C | 3" |
| L1 | 2-3/4" |
| L2 | 6-15/16" |
| W | 4" |
| H | 5" |
| SQUARE & PARALLEL | 0.0002" |
| Weight (lb) | 12 |
The Suburban Tool PM-V2 Master-Grind Index Fixture is a Punch Master spin fixture built for precision punch and die work, with a 1-5/8" V-block capacity and a 1-1/4" through hole for feeding longer parts. It's the toolmaker's answer to indexing flats, hexes, and forms with confidence.
A 48-position index plate delivers a hard index every 7-1/2 degrees, while a built-in sine bar sets any angle in between. The ball-and-race design runs 36 balls under preload for minimum deflection, the bearings are sealed against grit, and maximum spindle runout is held to ±0.0001".
- 48-position hard index every 7-1/2 degrees
- Built-in sine bar for angles between index stops
- 36 balls under preload for minimal deflection
- Sealed bearings keep grit out
- Maximum spindle runout ±0.0001"
- Made in the USA by Suburban Tool
- Fitted wooden case included.
- Regular price
- $3,907.05
