Specifications
| LENGTH | 6" x 1/4" x 1/2"<br>6" x 1/4" x 3/4"<br>6" x 1/2" x 3/4"<br>6" x 1/2" x 1" |
|---|---|
| Weight (lb) | 6 |

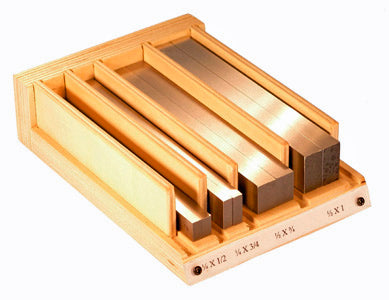

The P4W-SET-A from Suburban Tool is a 4-way ground precision steel parallel set containing four matched pairs, in sizes 6" x 1/4" x 1/2", 6" x 1/4" x 3/4", 6" x 1/2" x 3/4" and 6" x 1/2" x 1".
Made of alloy steel hardened to Rc 58-60 and ground on four sides, these parallels are held to size within 0.00025" so you can use them individually or interchange them without buying matched pairs for many common jobs.
- Four matched pairs ground on four sides for versatility
- Held to size within 0.00025" on four sides
- Adjacent sides square within 0.0005" per inch
- Opposite sides parallel within 0.0001" per 6 inches
- Alloy steel hardened to Rc 58-60 for durability
- Furnished in a wooden holder marked with sizes
- Made in the USA by Suburban Tool
- Each set includes four pairs of parallels in the sizes shown.
- Pairs are matched in size on the width and height to a tolerance of ±0.0002" on 6", 8" & 12" lengths and ±0.0003" for longer lengths.
- Total parallelism, straightness over the full length is 0.0001" on 6" & 8" lengths, 0.0002" on 12" lengths & 0.0003" on longer lengths.
- Adjacent ground sides are square with each other within 0.0004", except the 1/4" wide models, which are square within 0.0005".
Specifications
| LENGTH | 6" x 1/4" x 1/2"<br>6" x 1/4" x 3/4"<br>6" x 1/2" x 3/4"<br>6" x 1/2" x 1" |
|---|---|
| Weight (lb) | 6 |
The P4W-SET-A from Suburban Tool is a 4-way ground precision steel parallel set containing four matched pairs, in sizes 6" x 1/4" x 1/2", 6" x 1/4" x 3/4", 6" x 1/2" x 3/4" and 6" x 1/2" x 1".
Made of alloy steel hardened to Rc 58-60 and ground on four sides, these parallels are held to size within 0.00025" so you can use them individually or interchange them without buying matched pairs for many common jobs.
- Four matched pairs ground on four sides for versatility
- Held to size within 0.00025" on four sides
- Adjacent sides square within 0.0005" per inch
- Opposite sides parallel within 0.0001" per 6 inches
- Alloy steel hardened to Rc 58-60 for durability
- Furnished in a wooden holder marked with sizes
- Made in the USA by Suburban Tool
- Each set includes four pairs of parallels in the sizes shown.
- Pairs are matched in size on the width and height to a tolerance of ±0.0002" on 6", 8" & 12" lengths and ±0.0003" for longer lengths.
- Total parallelism, straightness over the full length is 0.0001" on 6" & 8" lengths, 0.0002" on 12" lengths & 0.0003" on longer lengths.
- Adjacent ground sides are square with each other within 0.0004", except the 1/4" wide models, which are square within 0.0005".
- Regular price
- $1,441.00
