Specifications
| DIMENSIONS | 46-1/2" long x 22-1/2" wide<br>x 35-1/2" high |
|---|---|
| SCALE RESOLUTION | 0.0002" |
| DIGITAL READOUT | Mituyoyo QM-Data200 |
| READOUT RESOLUTION | 0.0001" |
| Weight (lb) | 275 |

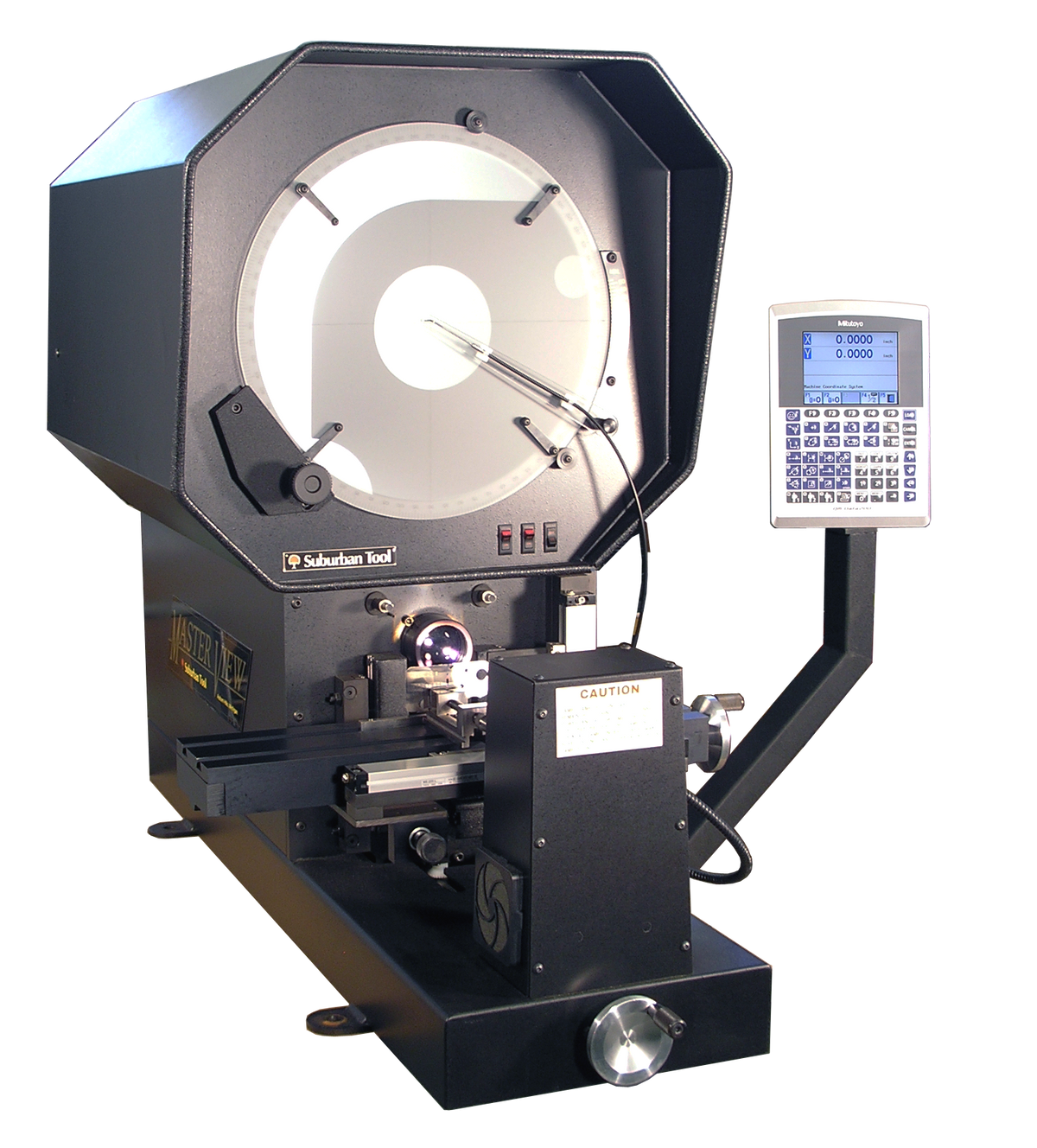

The MV-140-M Metric Optical Comparator from Suburban Tool is a metric 14" Master-View optical comparator built for demanding inspection, layout, and QC work. Its erect-image screen and bright fiber-optic illumination make part profiles easy to read and measure.
A rugged monorail frame and ball-way stage give the MV-140-M the stability and capacity a busy toolroom needs.
- Two long-life tungsten-halogen sources with duplex fiber optics for extra-bright surface illumination
- Switchable profile, surface, or combination illumination modes to suit any part
- High-capacity 4" x 8" travel stage with a 4-1/2" x 19" work surface, handling loads to 100 lbs
- Rotary frosted-glass screen with 90 degree crosslines, 360 degree protractor, and vernier readings to 5 arc minutes
- Screen-mounted overlay chart clips for fast chart changes
- Made in the USA by Suburban Tool
- Heavy-duty monorail type formed welded steel frame.
- 10 power lens system.
- Regular price
- $16,720.00
