Specifications
| MEASURES | 48-1/2" long x 22-1/4" wide x 34" high |
|---|---|
| Weight (lb) | 188 |

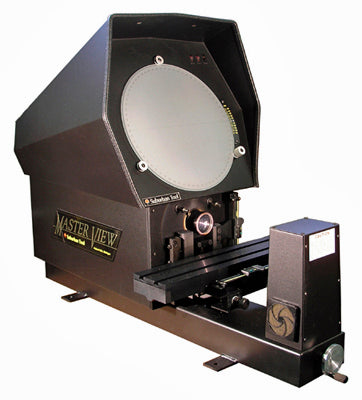

The Suburban Tool MV-14 is a 14" Master-View optical comparator that measures 48-1/2" long x 22-1/4" wide x 34" high, a floor-ready inspection machine sized for the modern toolroom and QC lab. Its 14" screen brings part profiles and contours into clear, magnified view.
From first-article inspection to layout and in-process checks, the MV-14 gives machinists and inspectors a dependable optical platform for comparing parts against the print.
- 14" screen optical comparator for profile and contour inspection
- Overall footprint of 48-1/2" x 22-1/4" x 34" suits toolroom and QC lab floors
- Magnified viewing for confident dimensional comparison
- Designed to work with Suburban's full range of 14" comparator charts
- Precision inspection backed by Suburban Tool
- Made in the USA by Suburban Tool
- Includes casters.
- Includes all cables and a bracket for mounting to the MV-14 housing.
- Includes clamp and screws.
- Output from scales is compatible with most SPC Systems.
- High capacity 4-1/2" x 19" stage with 8" horizontal & 4" vertical travel.
- Ball way construction handles loads to 100 lbs.
- Two long-life tungsten-halogen light sources.
- Extra bright surface illumination through duplex fiber optics.
- Individual switches select profile, surface or combination surface-profile illumination modes.
- Heavy-duty monorail type formed steel frame.
- Rotating frosted glass screen with 90° crosslines and 360° protractor markings.
- Vernier readings to 5 minutes of arc.
- 10 power lens system.
- Clip-on overlay chart clips.
Specifications
| MEASURES | 48-1/2" long x 22-1/4" wide x 34" high |
|---|---|
| Weight (lb) | 188 |
The Suburban Tool MV-14 is a 14" Master-View optical comparator that measures 48-1/2" long x 22-1/4" wide x 34" high, a floor-ready inspection machine sized for the modern toolroom and QC lab. Its 14" screen brings part profiles and contours into clear, magnified view.
From first-article inspection to layout and in-process checks, the MV-14 gives machinists and inspectors a dependable optical platform for comparing parts against the print.
- 14" screen optical comparator for profile and contour inspection
- Overall footprint of 48-1/2" x 22-1/4" x 34" suits toolroom and QC lab floors
- Magnified viewing for confident dimensional comparison
- Designed to work with Suburban's full range of 14" comparator charts
- Precision inspection backed by Suburban Tool
- Made in the USA by Suburban Tool
- Includes casters.
- Includes all cables and a bracket for mounting to the MV-14 housing.
- Includes clamp and screws.
- Output from scales is compatible with most SPC Systems.
- High capacity 4-1/2" x 19" stage with 8" horizontal & 4" vertical travel.
- Ball way construction handles loads to 100 lbs.
- Two long-life tungsten-halogen light sources.
- Extra bright surface illumination through duplex fiber optics.
- Individual switches select profile, surface or combination surface-profile illumination modes.
- Heavy-duty monorail type formed steel frame.
- Rotating frosted glass screen with 90° crosslines and 360° protractor markings.
- Vernier readings to 5 minutes of arc.
- 10 power lens system.
- Clip-on overlay chart clips.
- Regular price
- $8,814.75
