Specifications
| COLLET CAPACITY | ALL ER-25 |
|---|---|
| THRU HOLE | 5/8" |
| C | 1-7/8" |
| L1 | 3-3/16" |
| L2 | 5-3/16" |
| W1 | 2-1/4" |
| W2 | 3-1/16" |
| H | 3" |
| SQUARE & PARALLEL | 0.0002" |
| Weight (lb) | 4 |

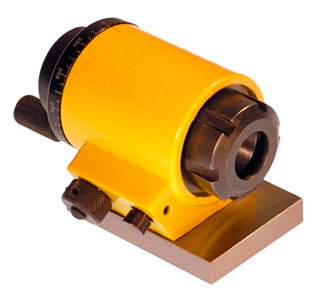

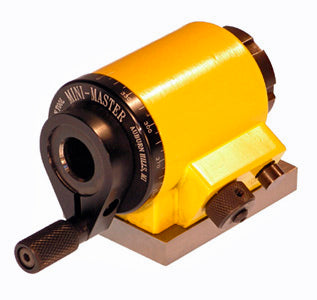

The Suburban Tool MM-25R Master-Grind Index Fixture handles the full ALL ER-25 collet capacity, giving toolmakers a compact, low-profile fixture for precision grinding, milling, and inspection setups. Its 72-position index plate lets you index every 5 degrees for fast, repeatable angular work.
Built for the toolroom, the MM-25R uses standard ER-25 spring collets and runs on a spindle supported by preloaded ball bearings for dependable accuracy.
- 72-position index plate indexes every 5 degrees
- Accepts standard ER-25 spring collets for versatile workholding
- Spindle rides in preloaded ball bearings with maximum runout of 0.0002" T.I.R.
- Lightweight design for easy handling and quick changeovers
- Low height is ideal for small machine set-ups
- Ships in a fitted wooden case with collet wrench included
- Made in the USA by Suburban Tool
- Hardened steel base.
- Fitted wooden case and collet wrench included.
- Regular price
- $1,559.25
Specifications
| COLLET CAPACITY | ALL ER-25 |
|---|---|
| THRU HOLE | 5/8" |
| C | 1-7/8" |
| L1 | 3-3/16" |
| L2 | 5-3/16" |
| W1 | 2-1/4" |
| W2 | 3-1/16" |
| H | 3" |
| SQUARE & PARALLEL | 0.0002" |
| Weight (lb) | 4 |
The Suburban Tool MM-25R Master-Grind Index Fixture handles the full ALL ER-25 collet capacity, giving toolmakers a compact, low-profile fixture for precision grinding, milling, and inspection setups. Its 72-position index plate lets you index every 5 degrees for fast, repeatable angular work.
Built for the toolroom, the MM-25R uses standard ER-25 spring collets and runs on a spindle supported by preloaded ball bearings for dependable accuracy.
- 72-position index plate indexes every 5 degrees
- Accepts standard ER-25 spring collets for versatile workholding
- Spindle rides in preloaded ball bearings with maximum runout of 0.0002" T.I.R.
- Lightweight design for easy handling and quick changeovers
- Low height is ideal for small machine set-ups
- Ships in a fitted wooden case with collet wrench included
- Made in the USA by Suburban Tool
- Hardened steel base.
- Fitted wooden case and collet wrench included.
- Regular price
- $1,559.25
