Specifications
| LENGTH | 25" |
|---|---|
| WIDTH | 6-1/8" |
| HEIGHT | 4-55/64" |
| BED HEIGHT ±0.0005" | 3.125" |
| JAW OPENING | (2) 4" |
| MAXIMUM CAPACITY | 21-23/64" |
| JAW WIDTH | 6" |
| KEYWAY | 11/16" |
| Weight (lb) | 105 |

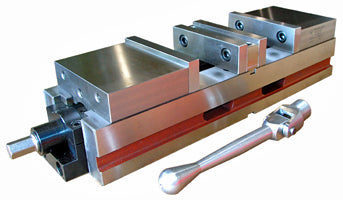

The Mill-Master 6 Inch Double Jaw Milling Vise (model VMM-D-6) from Suburban Tool is built specifically for milling machines and mounts directly to the machine table with standard T-bolts and nuts. Its double-jaw design lets you clamp two workpieces at once, boosting throughput on the mill without sacrificing accuracy.
The non-lifting moveable jaws keep parts flat to the bed, while a needle bearing delivers greater clamping force with less effort.
- Double-jaw design holds two workpieces for higher productivity
- Finished surfaces are square and parallel within ±0.0005"
- Non-lifting moveable jaw design holds work flat to the bed
- Needle bearing allows greater clamping force and ease of use
- Semi-hard nickel plated steel screw for smooth, durable operation
- Made in the USA by Suburban Tool
- Regular price
- $1,524.60
