Specifications
| SineSet ® SERIES | FACTORY PRE-FITTED MG5-5CV-S1 & MG5-BTS |
|---|---|
| Weight (lb) | 70 |
The Suburban Tool MG-5CV-S1-WBTS Master-Grind Index Fixture ships as a factory pre-fitted package—the MG5-5CV-S1 index fixture matched to the MG5-BTS baseplate and tailstock—so a complete 5C collet and v-block grinding setup arrives ready to run.
A 72-position index plate provides a hard stop every 5° ±15 arc seconds, and a built-in 2-1/2" sine bar sets angles in between. The spindle runs in two heavy-duty 4" diameter tapered roller bearings for a maximum spindle runout of 0.00005". Pre-fitting at the factory saves you from sending the fixture back later for baseplate and tailstock fitting.
- Factory pre-fitted MG5-5CV-S1 fixture and MG5-BTS baseplate and tailstock
- 72-position hard stop every 5° ±15 arc seconds
- Built-in 2-1/2" sine bar for in-between angles
- Two heavy-duty 4" tapered roller bearings
- Maximum spindle runout 0.00005"
- Horizontal or vertical v-block mounting
- Made in the USA by Suburban Tool
- Includes mounting bracket, motor pulley, drive belt & screws.

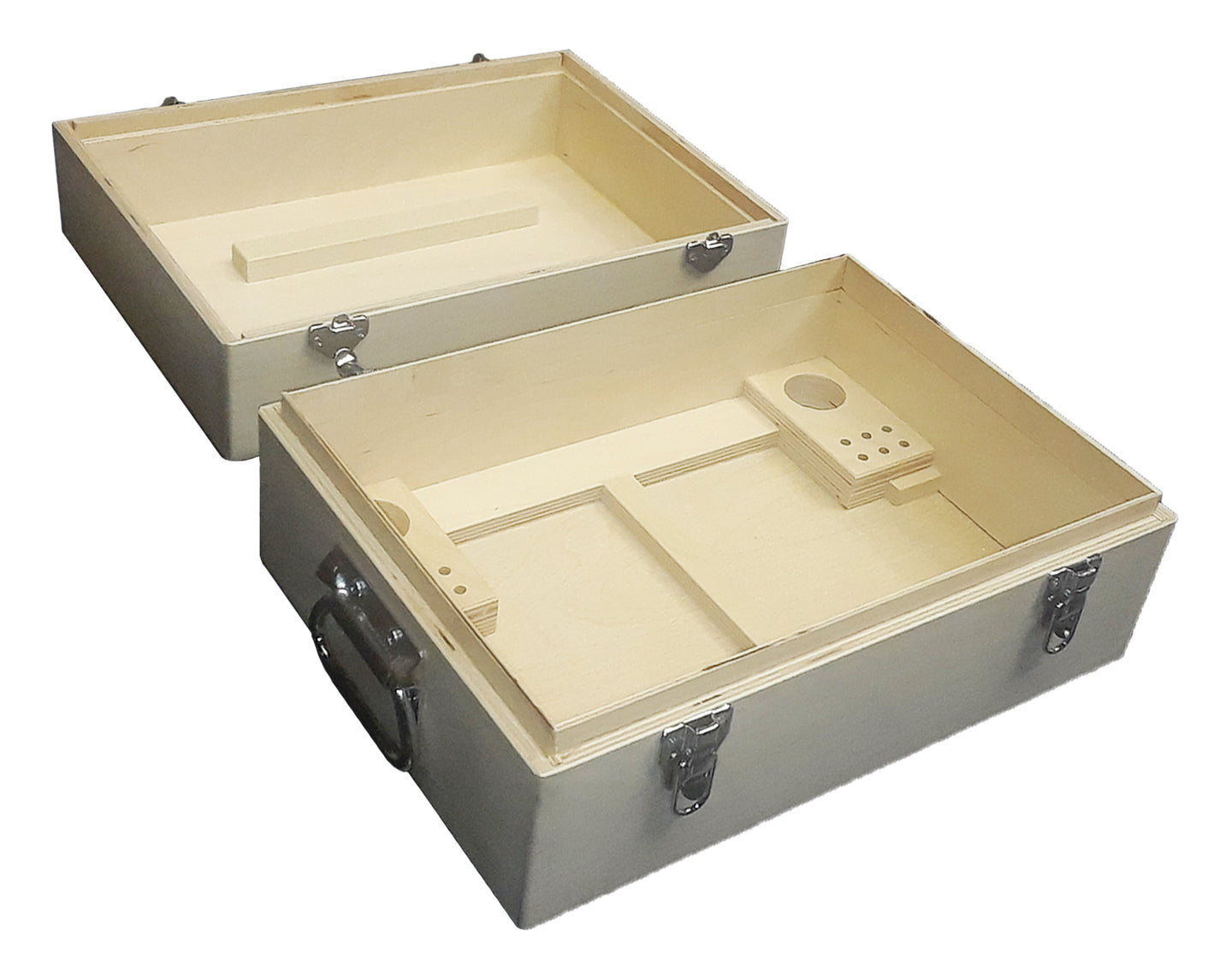

- Includes a fitted wooden case.
- Tailstock has 1/2" diameter x 60°, spring-loaded center with locking screw.
- Baseplate and edge guide are hardened and ground.
Suburban Tool Inc.
Master-Grind Index Fixture – FACTORY PRE-FITTED MG5-5CV-S1 & MG5-BTS (MG-5CV-S1-WBTS)
- Regular price
- $7,486.50
Specifications
| SineSet ® SERIES | FACTORY PRE-FITTED MG5-5CV-S1 & MG5-BTS |
|---|---|
| Weight (lb) | 70 |
The Suburban Tool MG-5CV-S1-WBTS Master-Grind Index Fixture ships as a factory pre-fitted package—the MG5-5CV-S1 index fixture matched to the MG5-BTS baseplate and tailstock—so a complete 5C collet and v-block grinding setup arrives ready to run.
A 72-position index plate provides a hard stop every 5° ±15 arc seconds, and a built-in 2-1/2" sine bar sets angles in between. The spindle runs in two heavy-duty 4" diameter tapered roller bearings for a maximum spindle runout of 0.00005". Pre-fitting at the factory saves you from sending the fixture back later for baseplate and tailstock fitting.
- Factory pre-fitted MG5-5CV-S1 fixture and MG5-BTS baseplate and tailstock
- 72-position hard stop every 5° ±15 arc seconds
- Built-in 2-1/2" sine bar for in-between angles
- Two heavy-duty 4" tapered roller bearings
- Maximum spindle runout 0.00005"
- Horizontal or vertical v-block mounting
- Made in the USA by Suburban Tool
- Includes mounting bracket, motor pulley, drive belt & screws.
- Includes a fitted wooden case.
- Tailstock has 1/2" diameter x 60°, spring-loaded center with locking screw.
- Baseplate and edge guide are hardened and ground.
- Regular price
- $7,486.50
