Specifications
| LENGTH | 4-1/4" |
|---|---|
| BASE DIAMETER | 1-7/16" |
| SHAFT DIAMETER | 1/2" |
| SHAFT LENGTH | 3-1/2" |
| Weight (lb) | 3 |

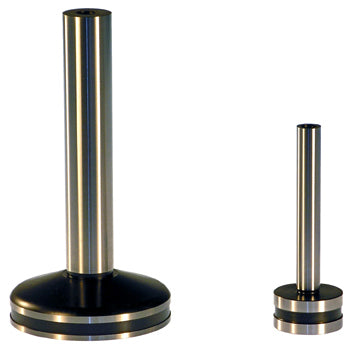

The MCS-4 magnetic cylinder square from Suburban Tool stands 4-1/4 inches tall on a compact 1-7/16 inch magnetic base, giving toolmakers a quick, accurate way to check squareness, parallelism, concentricity, and runout on component parts. The magnetic base eliminates clamping distortion and speeds set-up on the surface plate.
Manufactured from steel selected and normalized for stability and uniformity, its base is perpendicular to the shaft within 0.0001 inch over the length of the square.
- Magnetic base eliminates clamping distortion and speeds inspection set-up
- Checks squareness, parallelism, concentricity, and runout in one fixture
- Normalized steel construction for long-term stability and uniformity
- Includes a fitted wooden storage case and a form showing advertised sizes and tolerances
- Made in the USA by Suburban Tool
- Includes fitted wooden storage case.
Available with No Certification, Short Form, or Long Form Certification.
Specifications
| LENGTH | 4-1/4" |
|---|---|
| BASE DIAMETER | 1-7/16" |
| SHAFT DIAMETER | 1/2" |
| SHAFT LENGTH | 3-1/2" |
| Weight (lb) | 3 |
The MCS-4 magnetic cylinder square from Suburban Tool stands 4-1/4 inches tall on a compact 1-7/16 inch magnetic base, giving toolmakers a quick, accurate way to check squareness, parallelism, concentricity, and runout on component parts. The magnetic base eliminates clamping distortion and speeds set-up on the surface plate.
Manufactured from steel selected and normalized for stability and uniformity, its base is perpendicular to the shaft within 0.0001 inch over the length of the square.
- Magnetic base eliminates clamping distortion and speeds inspection set-up
- Checks squareness, parallelism, concentricity, and runout in one fixture
- Normalized steel construction for long-term stability and uniformity
- Includes a fitted wooden storage case and a form showing advertised sizes and tolerances
- Made in the USA by Suburban Tool
- Includes fitted wooden storage case.
Available with No Certification, Short Form, or Long Form Certification.
- Regular price
- $668.85
