Specifications
| SineSet ® SERIES | S2 |
|---|---|
| L | 12" |
| W | 18" |
| H | 6-5/8" |
| C | 10" ±0.0003" |
| SQUARE & PARALLEL | 0.0004" |
| WATTS | 150 |
| Weight (lb) | 395 |

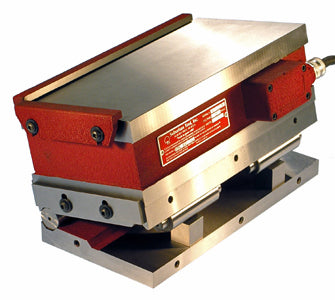

The Suburban Tool ESP-1218-L-S2 is an 18" x 12" electromagnetic sine plate from the SineSet series, combining a precision sine plate with a sealed longitudinal-pole electromagnetic chuck in one versatile fixture. Use the two together for angled magnetic workholding or independently as the setup demands.
Ideal for surface grinding, inspection and precision angle layout, it sets small angles accurately with standard gage blocks.
- Angular accuracy guaranteed within 5 seconds of arc up to 15 degrees, 10 seconds up to 30 degrees, and 15 seconds up to 45 degrees
- Gage block rolls provide dual 0.200" minute steps for fine angle setting
- Sealed against dirt and liquids; the chuck removes with only four bolts
- Includes two self-storing hardened and ground sine-plate rails plus two chuck side rails
- Made in the USA by Suburban Tool
- Longitudinal (lengthwise) or transverse (crosswise) poles are available, based on the size & shape of the part to be held.
- Chuck controls must be used with all electromagnetic chucks!.
Available with No Certification, Short Form, or Long Form Certification.
- Regular price
- $17,078.25
Specifications
| SineSet ® SERIES | S2 |
|---|---|
| L | 12" |
| W | 18" |
| H | 6-5/8" |
| C | 10" ±0.0003" |
| SQUARE & PARALLEL | 0.0004" |
| WATTS | 150 |
| Weight (lb) | 395 |
The Suburban Tool ESP-1218-L-S2 is an 18" x 12" electromagnetic sine plate from the SineSet series, combining a precision sine plate with a sealed longitudinal-pole electromagnetic chuck in one versatile fixture. Use the two together for angled magnetic workholding or independently as the setup demands.
Ideal for surface grinding, inspection and precision angle layout, it sets small angles accurately with standard gage blocks.
- Angular accuracy guaranteed within 5 seconds of arc up to 15 degrees, 10 seconds up to 30 degrees, and 15 seconds up to 45 degrees
- Gage block rolls provide dual 0.200" minute steps for fine angle setting
- Sealed against dirt and liquids; the chuck removes with only four bolts
- Includes two self-storing hardened and ground sine-plate rails plus two chuck side rails
- Made in the USA by Suburban Tool
- Longitudinal (lengthwise) or transverse (crosswise) poles are available, based on the size & shape of the part to be held.
- Chuck controls must be used with all electromagnetic chucks!.
Available with No Certification, Short Form, or Long Form Certification.
- Regular price
- $17,078.25
