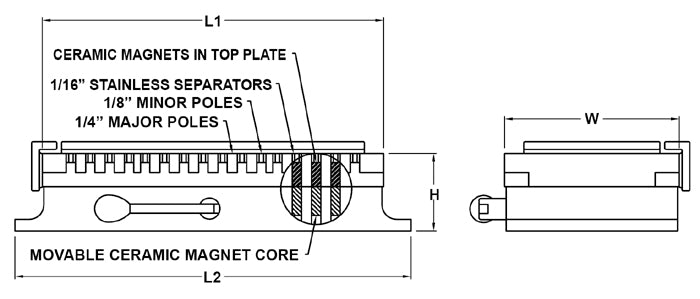

Specifications
| L1 | 18" |
|---|---|
| L2 | 18-3/4" |
| W | 8" |
| H | 2-3/4" |
| Weight (lb) | 87 |

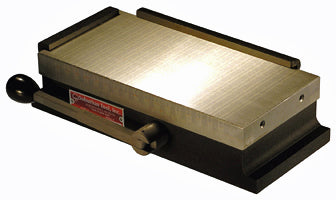

The Suburban Tool DMB-818 Magnum-Force permanent magnetic chuck, 8" x 18", uses dual magnets to deliver 120 percent more power and positive shut-off for easy workpiece removal.
Stationary magnets in the top plate work with a movable magnet core to provide an average holding power of 90-100 pounds per square inch, twice the power of a standard chuck, while the combination fine and standard pole spacing grips both small and large parts.
- Dual magnets deliver an average 90-100 psi hold, twice a standard chuck
- Combination fine/standard pole spacing secures both small and large parts
- Laminated and brazed top plate provides a rigid work surface
- Low height gives more work clearance under the grinding wheel
- Includes two hold-down clamps, one side rail, and one end rail; sealed against dirt and liquids
- Made in the USA by Suburban Tool
Available with No Certification, Short Form, or Long Form Certification.
Specifications
| L1 | 18" |
|---|---|
| L2 | 18-3/4" |
| W | 8" |
| H | 2-3/4" |
| Weight (lb) | 87 |
The Suburban Tool DMB-818 Magnum-Force permanent magnetic chuck, 8" x 18", uses dual magnets to deliver 120 percent more power and positive shut-off for easy workpiece removal.
Stationary magnets in the top plate work with a movable magnet core to provide an average holding power of 90-100 pounds per square inch, twice the power of a standard chuck, while the combination fine and standard pole spacing grips both small and large parts.
- Dual magnets deliver an average 90-100 psi hold, twice a standard chuck
- Combination fine/standard pole spacing secures both small and large parts
- Laminated and brazed top plate provides a rigid work surface
- Low height gives more work clearance under the grinding wheel
- Includes two hold-down clamps, one side rail, and one end rail; sealed against dirt and liquids
- Made in the USA by Suburban Tool
Available with No Certification, Short Form, or Long Form Certification.
- Regular price
- $5,765.55
