Specifications

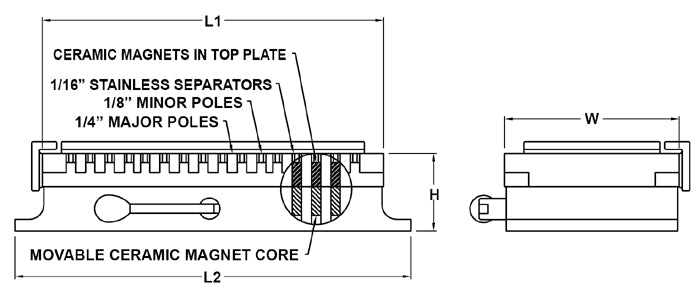

| L1 | 6" |
|---|---|
| L2 | 7-1/8" |
| W | 6-1/2" |
| H | 2-3/4" |
| Weight (lb) | 25 |

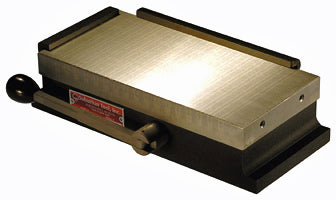

The Suburban Tool DMB-66 is a Magnum-Force permanent magnetic chuck with a compact 6-1/2" x 6" work surface, delivering big holding power on smaller surface grinders. Its dual-magnet design provides 120 percent more power and positive shut-off for easy workpiece removal.
Stationary top-plate magnets and a movable magnet core combine for an average holding power of 90-100 pounds per square inch, twice that of a standard chuck, and combination fine and standard pole spacing grips both small and large parts.
- Dual-magnet Magnum-Force design gives 120% more power with positive shut-off
- Average 90-100 PSI holding power, twice that of a standard chuck
- Laminated and brazed top plate provides a rigid work surface
- Low height delivers more work clearance
- Includes two hold-down clamps, one side rail, and one end rail
- Made in the USA by Suburban Tool
Available with No Certification, Short Form, or Long Form Certification.
- Regular price
- $2,555.70
