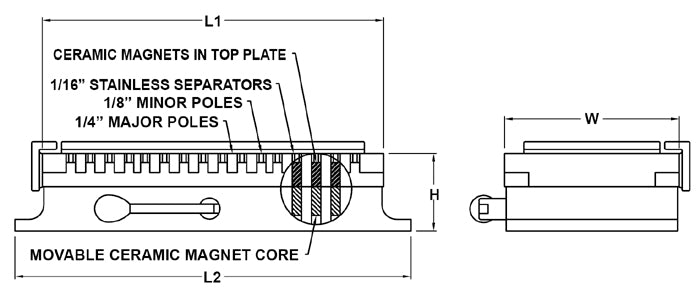

Specifications
| L1 | 15" |
|---|---|
| L2 | 15-3/4" |
| W | 8" |
| H | 2-3/4" |
| Weight (lb) | 73 |

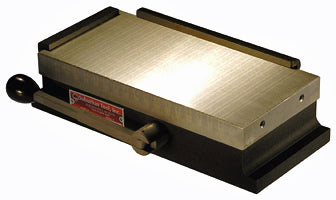

The Suburban Tool DMB-815 is a Magnum-Force permanent magnetic chuck with a large 8" x 15" work surface, built for machinists tackling bigger jobs on the surface grinder. Its dual-magnet design delivers 120 percent more power and positive shut-off for easy workpiece removal.
Stationary top-plate magnets work with a movable magnet core to produce an average holding power of 90-100 pounds per square inch, twice that of a standard chuck, while combination fine and standard pole spacing grips both small and large parts.
- Dual-magnet Magnum-Force design gives 120% more power with positive shut-off
- Average 90-100 PSI holding power, twice that of a standard chuck
- Laminated and brazed top plate provides a rigid work surface
- Low height delivers more work clearance on the grinder
- Includes two hold-down clamps, one side rail, and one end rail
- Made in the USA by Suburban Tool
Available with No Certification, Short Form, or Long Form Certification.
Specifications
| L1 | 15" |
|---|---|
| L2 | 15-3/4" |
| W | 8" |
| H | 2-3/4" |
| Weight (lb) | 73 |
The Suburban Tool DMB-815 is a Magnum-Force permanent magnetic chuck with a large 8" x 15" work surface, built for machinists tackling bigger jobs on the surface grinder. Its dual-magnet design delivers 120 percent more power and positive shut-off for easy workpiece removal.
Stationary top-plate magnets work with a movable magnet core to produce an average holding power of 90-100 pounds per square inch, twice that of a standard chuck, while combination fine and standard pole spacing grips both small and large parts.
- Dual-magnet Magnum-Force design gives 120% more power with positive shut-off
- Average 90-100 PSI holding power, twice that of a standard chuck
- Laminated and brazed top plate provides a rigid work surface
- Low height delivers more work clearance on the grinder
- Includes two hold-down clamps, one side rail, and one end rail
- Made in the USA by Suburban Tool
Available with No Certification, Short Form, or Long Form Certification.
- Regular price
- $4,784.85
