Specifications
| L1 | 10" |
|---|---|
| L2 | 11-1/8" |
| W | 6" |
| H | 2-3/4" |
| Weight (lb) | 35 |

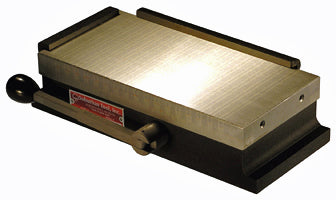

The DMB-610 6" × 10" permanent magnetic chuck from Suburban Tool provides wide-format Magnum-Force dual-magnet workholding for surface grinders and toolroom setups.
Stationary top-plate magnets and a movable magnet core average 90-100 pounds per square inch of holding power—twice a standard chuck—and shut off positively so parts release without prying.
- Combination fine / standard pole spacing secures small and large workpieces
- Laminated and brazed top plate delivers a rigid, grind-ready surface
- Lubricated and sealed against dirt and liquids for long-term reliability
- Low height maximizes clearance for the wheel and workpiece
- Includes two hold-down clamps, one side rail and one end rail from Suburban Tool
- Made in the USA by Suburban Tool
Specifications
| L1 | 10" |
|---|---|
| L2 | 11-1/8" |
| W | 6" |
| H | 2-3/4" |
| Weight (lb) | 35 |
The DMB-610 6" × 10" permanent magnetic chuck from Suburban Tool provides wide-format Magnum-Force dual-magnet workholding for surface grinders and toolroom setups.
Stationary top-plate magnets and a movable magnet core average 90-100 pounds per square inch of holding power—twice a standard chuck—and shut off positively so parts release without prying.
- Combination fine / standard pole spacing secures small and large workpieces
- Laminated and brazed top plate delivers a rigid, grind-ready surface
- Lubricated and sealed against dirt and liquids for long-term reliability
- Low height maximizes clearance for the wheel and workpiece
- Includes two hold-down clamps, one side rail and one end rail from Suburban Tool
- Made in the USA by Suburban Tool
- Regular price
- $2,733.15
