files/DMB-510_20Magnum-Force_20Surface_20Grinder_20Chuck_3539d591-b236-4c24-999a-768b103b6e0e.jpg
-

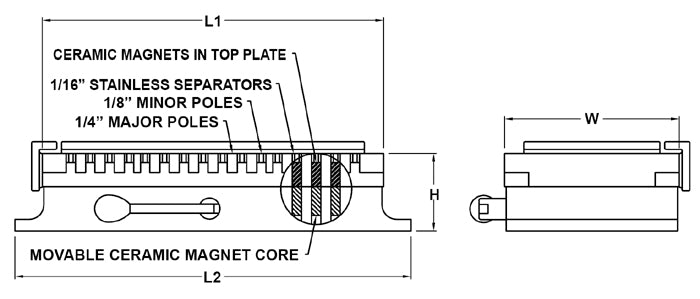

files/DMB-DWG_20Suburban_20Tool_20Magnum-Force_20Surface_20Grinder_20Chuck_20Drawing_f45de7b7-c3a2-41d6-8013-c2384361e3b3.jpg
Specifications
| L1 | 12" |
|---|---|
| L2 | 13-1/8" |
| W | 5" |
| H | 2-3/4" |
| Weight (lb) | 35 |

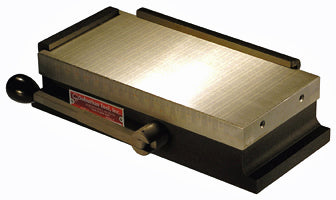

The DMB-512 5" × 12" permanent magnetic chuck from Suburban Tool offers Magnum-Force dual-magnet holding power for demanding surface grinding and precision workholding.
Stationary magnets in the top plate and a movable magnet core provide an average holding power of 90-100 pounds per square inch—twice the power of a standard chuck—with positive shut-off for quick, easy workpiece removal.
- Combination fine / standard pole spacing grips both small and large parts
- Rigid laminated and brazed top plate ensures accurate, repeatable grinding
- Lubricated and sealed against dirt and liquids for durability in the shop
- Low height provides added clearance for larger tooling and workpieces
- Ships with two hold-down clamps, one side rail and one end rail from Suburban Tool
- Made in the USA by Suburban Tool
Specifications
| L1 | 12" |
|---|---|
| L2 | 13-1/8" |
| W | 5" |
| H | 2-3/4" |
| Weight (lb) | 35 |
The DMB-512 5" × 12" permanent magnetic chuck from Suburban Tool offers Magnum-Force dual-magnet holding power for demanding surface grinding and precision workholding.
Stationary magnets in the top plate and a movable magnet core provide an average holding power of 90-100 pounds per square inch—twice the power of a standard chuck—with positive shut-off for quick, easy workpiece removal.
- Combination fine / standard pole spacing grips both small and large parts
- Rigid laminated and brazed top plate ensures accurate, repeatable grinding
- Lubricated and sealed against dirt and liquids for durability in the shop
- Low height provides added clearance for larger tooling and workpieces
- Ships with two hold-down clamps, one side rail and one end rail from Suburban Tool
- Made in the USA by Suburban Tool
- Regular price
- $2,999.85
