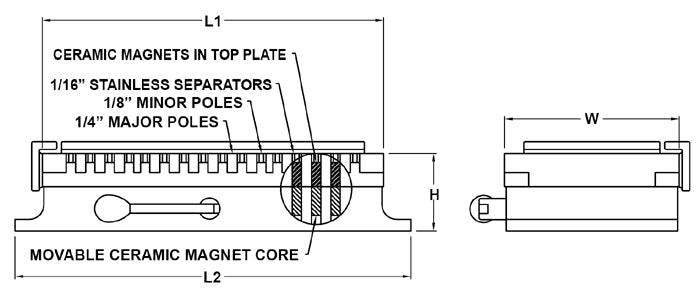

files/DMB-DWG_20Suburban_20Tool_20Magnum-Force_20Surface_20Grinder_20Chuck_20Drawing_4168c59f-72c5-4b5f-a307-63de23857ed1.jpg
Specifications
| L1 | 10" |
|---|---|
| L2 | 11-1/8" |
| W | 5" |
| H | 2-3/4" |
| Weight (lb) | 28 |

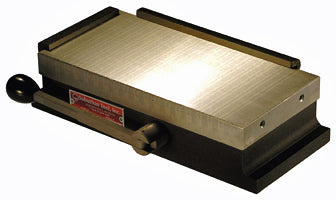

The DMB-510 5" × 10" permanent magnetic chuck from Suburban Tool delivers Magnum-Force dual-magnet workholding for surface grinding of small and large parts alike.
A movable magnet core paired with stationary top-plate magnets averages 90-100 pounds per square inch—twice the grip of a standard chuck—and shuts off positively so finished parts lift away with ease.
- Combination fine / standard pole spacing holds a wide range of part sizes
- Laminated, brazed top plate provides a rigid, resurfaceable grinding surface
- Lubricated and fully sealed against dirt and liquids
- Low height adds valuable work clearance under the grinding wheel
- Includes two hold-down clamps, one side rail and one end rail from Suburban Tool
- Made in the USA by Suburban Tool
Specifications
| L1 | 10" |
|---|---|
| L2 | 11-1/8" |
| W | 5" |
| H | 2-3/4" |
| Weight (lb) | 28 |
The DMB-510 5" × 10" permanent magnetic chuck from Suburban Tool delivers Magnum-Force dual-magnet workholding for surface grinding of small and large parts alike.
A movable magnet core paired with stationary top-plate magnets averages 90-100 pounds per square inch—twice the grip of a standard chuck—and shuts off positively so finished parts lift away with ease.
- Combination fine / standard pole spacing holds a wide range of part sizes
- Laminated, brazed top plate provides a rigid, resurfaceable grinding surface
- Lubricated and fully sealed against dirt and liquids
- Low height adds valuable work clearance under the grinding wheel
- Includes two hold-down clamps, one side rail and one end rail from Suburban Tool
- Made in the USA by Suburban Tool
- Regular price
- $2,656.50
