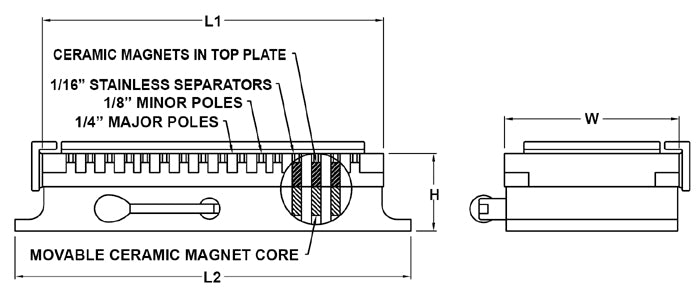

Specifications
| L1 | 8" |
|---|---|
| L2 | 9-1/8" |
| W | 4" |
| H | 2-3/8" |
| Weight (lb) | 20 |

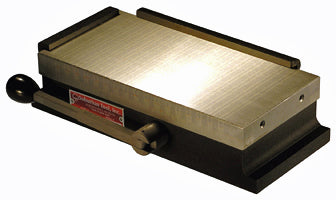

The DMB-48 4" × 8" permanent magnetic chuck from Suburban Tool brings Magnum-Force dual-magnet holding to mid-size surface grinding and toolroom workholding.
Stationary top-plate magnets work with a movable magnet core to average 90-100 pounds per square inch of holding power—twice that of a standard chuck—with positive shut-off for effortless part removal.
- Combination fine / standard pole spacing secures both small and large workpieces
- Rigid laminated and brazed top plate stands up to repeated grinding and dressing
- Lubricated and sealed against dirt and liquids for a long service life
- Low profile maximizes clearance between the wheel and worktable
- Supplied with two hold-down clamps, one side rail and one end rail from Suburban Tool
- Made in the USA by Suburban Tool
Specifications
| L1 | 8" |
|---|---|
| L2 | 9-1/8" |
| W | 4" |
| H | 2-3/8" |
| Weight (lb) | 20 |
The DMB-48 4" × 8" permanent magnetic chuck from Suburban Tool brings Magnum-Force dual-magnet holding to mid-size surface grinding and toolroom workholding.
Stationary top-plate magnets work with a movable magnet core to average 90-100 pounds per square inch of holding power—twice that of a standard chuck—with positive shut-off for effortless part removal.
- Combination fine / standard pole spacing secures both small and large workpieces
- Rigid laminated and brazed top plate stands up to repeated grinding and dressing
- Lubricated and sealed against dirt and liquids for a long service life
- Low profile maximizes clearance between the wheel and worktable
- Supplied with two hold-down clamps, one side rail and one end rail from Suburban Tool
- Made in the USA by Suburban Tool
- Regular price
- $2,296.35
