Specifications
| L1 | 24" |
|---|---|
| L2 | 24-3/4" |
| W | 12" |
| H | 3-1/2" |
| Weight (lb) | 192 |

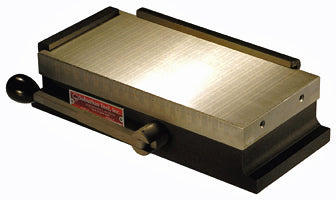

The DMB-1224 is a 12" × 24" Magnum-Force permanent magnetic chuck from Suburban Tool, using dual magnets to tackle heavy surface grinding on long parts.
Stationary top-plate magnets combine with a movable magnet core to deliver about twice the holding power of a standard chuck, with positive shut-off for easy part removal.
- Dual-magnet design averages 90-100 pounds per square inch — twice a standard chuck's grip.
- Combination fine/standard pole spacing secures both small and large parts.
- Laminated and brazed top plate provides a rigid, accurate work surface.
- Low height boosts work clearance; lubricated and sealed against dirt and liquids.
- Includes two hold-down clamps, one side rail, and one end rail.
- Made in the USA by Suburban Tool
Available with No Certification, Short Form, or Long Form Certification.
- Regular price
- $13,179.60
