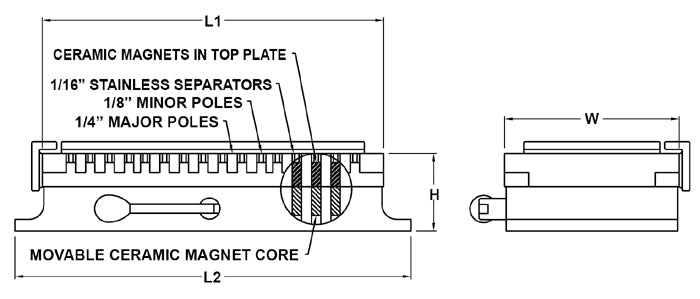

Specifications
| L1 | 18" |
|---|---|
| L2 | 18-3/4" |
| W | 12" |
| H | 3-1/2" |
| Weight (lb) | 170 |

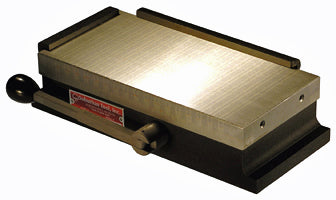

The DMB-1218 is a 12" × 18" Magnum-Force permanent magnetic chuck from Suburban Tool, built with dual magnets for demanding surface grinding.
Stationary magnets in the top plate work with a movable magnet core to deliver roughly twice the holding power of a standard chuck, plus positive shut-off for easy workpiece removal.
- Dual-magnet design averages 90-100 pounds per square inch of holding power — twice that of a standard chuck.
- Combination fine/standard pole spacing grips both small and large parts.
- Laminated and brazed top plate gives a rigid, accurate work surface.
- Low profile adds work clearance; lubricated and sealed against dirt and liquids.
- Includes two hold-down clamps, one side rail, and one end rail.
- Made in the USA by Suburban Tool
Available with No Certification, Short Form, or Long Form Certification.
