files/B-5-SP_20Master-Sine_20Sine_20Plate_42974dce-4a67-449a-aa28-065d5bebdbdf.jpg
-
files/B-SP-DWG_20Suburban_20Tool_20Master-Sine_20Sine_20Plate_20Drawing_435cfe70-c37e-4862-bfca-330bc0dfcb6e.jpg
Specifications
| L | 6-1/2" |
|---|---|
| W | 6-1/2" |
| H | 2-1/2" |
| C | 5" ±0.0002" |
| SQUARE & PARALLEL | 0.0002" |
| Weight (lb) | 22 |

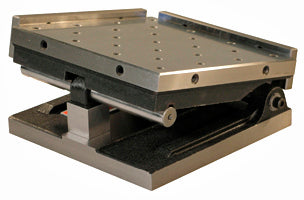

The B-5-SP 6-1/2" × 6-1/2" Sine Plate is a Master-Sine precision tool from Suburban Tool, engineered for accurate gage-block angle setups in grinding, inspection, and toolroom work. Made of steel hardened to Rc 58-60, it stands up to demanding daily shop use.
Its 1/4-20 tapped holes make workholding and fixturing straightforward, while the hardened, ground-and-lapped roll bar ensures reliable, repeatable positioning.
- Steel construction hardened to Rc 58-60 for durability and wear resistance
- 1/4-20 tapped holes for convenient part clamping and fixturing
- Roll bar ground and lapped for straightness and roundness
- Swivel block provides full-face contact with gage blocks, holding them securely
- Exclusive internal locking device pulls the top plate down without distortion
- Made in the USA by Suburban Tool
- Side and back rail included.
Available with No Certification, Short Form, or Long Form Certification.
Specifications
| L | 6-1/2" |
|---|---|
| W | 6-1/2" |
| H | 2-1/2" |
| C | 5" ±0.0002" |
| SQUARE & PARALLEL | 0.0002" |
| Weight (lb) | 22 |
The B-5-SP 6-1/2" × 6-1/2" Sine Plate is a Master-Sine precision tool from Suburban Tool, engineered for accurate gage-block angle setups in grinding, inspection, and toolroom work. Made of steel hardened to Rc 58-60, it stands up to demanding daily shop use.
Its 1/4-20 tapped holes make workholding and fixturing straightforward, while the hardened, ground-and-lapped roll bar ensures reliable, repeatable positioning.
- Steel construction hardened to Rc 58-60 for durability and wear resistance
- 1/4-20 tapped holes for convenient part clamping and fixturing
- Roll bar ground and lapped for straightness and roundness
- Swivel block provides full-face contact with gage blocks, holding them securely
- Exclusive internal locking device pulls the top plate down without distortion
- Made in the USA by Suburban Tool
- Side and back rail included.
Available with No Certification, Short Form, or Long Form Certification.
- Regular price
- $3,456.60
