Specifications
| L | 4" |
|---|---|
| W | 4" |
| H | 2" |
| C | 3" ±0.0002" |
| SQUARE & PARALLEL | 0.0002" |
| Weight (lb) | 8 |

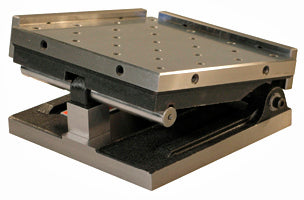

The Suburban Tool B-3-SP is a compact 4" x 4" Master-Sine sine plate built for precise angular setups on small, high-accuracy parts in the toolroom and inspection area.
Made of steel and hardened to Rc 58-60, the B-3-SP stands up to repeated toolroom use. Its roll bar and hinge are hardened steel, ground and lapped for straightness and roundness, while the swivel block delivers full face contact with your gage blocks to hold the stack securely. An exclusive locking device inside the hinge roll provides a positive, expanding lock, pulling the top plate down onto the gage blocks without distortion.
- Steel construction hardened to Rc 58-60 for durability
- Roll bar and hinge ground and lapped for straightness and roundness
- Swivel block gives full face contact to hold gage blocks securely
- Positive expanding hinge lock seats the top plate without distortion
- 1/4-20 tapped holes for easy part and fixture mounting
- Made in the USA by Suburban Tool
- B-3-SP and B-5-SP have 1/4-20 tapped holes. The remaining models have 5/16-18.
- Side and back rail included.
Available with No Certification, Short Form, or Long Form Certification.
Specifications
| L | 4" |
|---|---|
| W | 4" |
| H | 2" |
| C | 3" ±0.0002" |
| SQUARE & PARALLEL | 0.0002" |
| Weight (lb) | 8 |
The Suburban Tool B-3-SP is a compact 4" x 4" Master-Sine sine plate built for precise angular setups on small, high-accuracy parts in the toolroom and inspection area.
Made of steel and hardened to Rc 58-60, the B-3-SP stands up to repeated toolroom use. Its roll bar and hinge are hardened steel, ground and lapped for straightness and roundness, while the swivel block delivers full face contact with your gage blocks to hold the stack securely. An exclusive locking device inside the hinge roll provides a positive, expanding lock, pulling the top plate down onto the gage blocks without distortion.
- Steel construction hardened to Rc 58-60 for durability
- Roll bar and hinge ground and lapped for straightness and roundness
- Swivel block gives full face contact to hold gage blocks securely
- Positive expanding hinge lock seats the top plate without distortion
- 1/4-20 tapped holes for easy part and fixture mounting
- Made in the USA by Suburban Tool
- B-3-SP and B-5-SP have 1/4-20 tapped holes. The remaining models have 5/16-18.
- Side and back rail included.
Available with No Certification, Short Form, or Long Form Certification.
- Regular price
- $2,403.45
