Specifications
| L | 24" |
|---|---|
| W | 24" |
| H | 7-1/2" |
| C | 20" ±0.0005" |
| T | 11/16" |
| SQUARE & PARALLEL | 0.0005" |
| Weight (lb) | 630 |

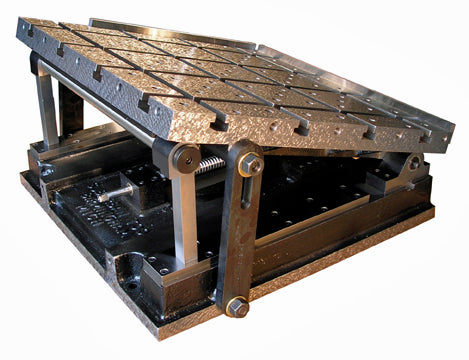

The Suburban Tool B-24 is a heavy-duty 24" x 24" sine plate engineered for angular machining with positive, repetitive accuracy on large workpieces in the toolroom and grinding department.
Its top and bottom plates are cast from heavy-sectioned class 35-40 cast iron, delivering the strength and rigidity to absorb the thrust and chatter of heavy cuts over a long service life. A built-in ball screw elevating mechanism makes opening and closing this large sine plate safe and easy, while the hand-flaked top surface supports precise setups.
- Heavy-sectioned class 35-40 cast iron top and bottom plates for extra strength
- Built-in ball screw elevating mechanism for safe, easy opening and closing
- Hand-flaked top surface for accurate part and gage-block setups
- Extra-heavy locking straps hold the set angle securely under load
- Built to withstand the thrust and chatter of machining cuts for long, accurate service
- Made in the USA by Suburban Tool
Available with No Certification, Short Form, or Long Form Certification.
Specifications
| L | 24" |
|---|---|
| W | 24" |
| H | 7-1/2" |
| C | 20" ±0.0005" |
| T | 11/16" |
| SQUARE & PARALLEL | 0.0005" |
| Weight (lb) | 630 |
The Suburban Tool B-24 is a heavy-duty 24" x 24" sine plate engineered for angular machining with positive, repetitive accuracy on large workpieces in the toolroom and grinding department.
Its top and bottom plates are cast from heavy-sectioned class 35-40 cast iron, delivering the strength and rigidity to absorb the thrust and chatter of heavy cuts over a long service life. A built-in ball screw elevating mechanism makes opening and closing this large sine plate safe and easy, while the hand-flaked top surface supports precise setups.
- Heavy-sectioned class 35-40 cast iron top and bottom plates for extra strength
- Built-in ball screw elevating mechanism for safe, easy opening and closing
- Hand-flaked top surface for accurate part and gage-block setups
- Extra-heavy locking straps hold the set angle securely under load
- Built to withstand the thrust and chatter of machining cuts for long, accurate service
- Made in the USA by Suburban Tool
Available with No Certification, Short Form, or Long Form Certification.
- Regular price
- $42,466.20
