Specifications
| L | 12-1/2" |
|---|---|
| W | 7-3/4" |
| H | 2-7/8" |
| C | 10" ±0.0002" |
| SQUARE & PARALLEL | 0.0003" |
| Weight (lb) | 55 |

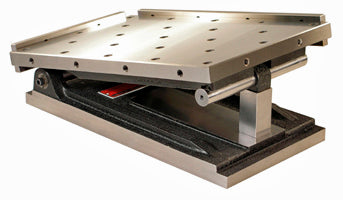

The B-10-SP 7-3/4" × 12-1/2" Sine Plate is a Master-Sine precision tool from Suburban Tool, engineered for accurate gage-block angle setups in surface grinding, inspection, and toolroom work. Made of steel hardened to Rc 58-60, it delivers lasting accuracy under daily use.
Its 5/16-18 tapped holes make clamping and fixturing simple, while the hardened, ground-and-lapped roll bar ensures dependable, repeatable positioning.
- Roomy 7-3/4" × 12-1/2" surface supports a wide range of parts
- Steel hardened to Rc 58-60 for durability and wear resistance
- 5/16-18 tapped holes for convenient part clamping and fixturing
- Roll bar ground and lapped for straightness and roundness
- Exclusive internal locking device pulls the top plate down without distortion
- Made in the USA by Suburban Tool
- Swivel block provides full face contact with gage blocks, keeping them securely in place.
- Side and back rail included.
Available with No Certification, Short Form, or Long Form Certification.
Specifications
| L | 12-1/2" |
|---|---|
| W | 7-3/4" |
| H | 2-7/8" |
| C | 10" ±0.0002" |
| SQUARE & PARALLEL | 0.0003" |
| Weight (lb) | 55 |
The B-10-SP 7-3/4" × 12-1/2" Sine Plate is a Master-Sine precision tool from Suburban Tool, engineered for accurate gage-block angle setups in surface grinding, inspection, and toolroom work. Made of steel hardened to Rc 58-60, it delivers lasting accuracy under daily use.
Its 5/16-18 tapped holes make clamping and fixturing simple, while the hardened, ground-and-lapped roll bar ensures dependable, repeatable positioning.
- Roomy 7-3/4" × 12-1/2" surface supports a wide range of parts
- Steel hardened to Rc 58-60 for durability and wear resistance
- 5/16-18 tapped holes for convenient part clamping and fixturing
- Roll bar ground and lapped for straightness and roundness
- Exclusive internal locking device pulls the top plate down without distortion
- Made in the USA by Suburban Tool
- Swivel block provides full face contact with gage blocks, keeping them securely in place.
- Side and back rail included.
Available with No Certification, Short Form, or Long Form Certification.
- Regular price
- $5,327.70
