Specifications
| SINGLE or PAIR | SINGLE |
|---|---|
| SineSet ® SERIES | S1 |
| A | 6" |
| B | 6" |
| C | 4" |
| D | 1-1/4" |
| E | -- |
| F | -- |
| HOLES | (31) 1/4-20<br>(6) 5/16" x 7/16" C'BORE |
| Weight (lb) | 20 |

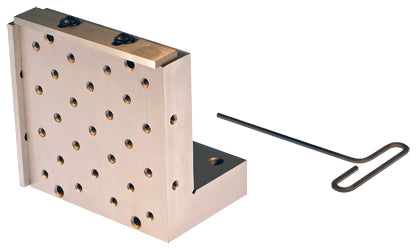

The AP-664-S1 is a 6" x 6" x 4" precision ground angle plate from Suburban Tool, machined solid and one-piece from hardened steel for accurate workholding on larger parts. As a SineSet® S1 series plate, it bolts directly to sine plates and compound sine plates of the same series for repeatable angle setups.
An array of tapped holes and counterbores lets you clamp and locate work securely for surface grinding, layout, and inspection.
- Solid one-piece hardened steel construction
- Ground square and parallel within 0.0002"
- SineSet® S1 series bolts directly to matching sine plates
- (31) 1/4-20 tapped holes plus counterbores for versatile setups
- Large faces ideal for grinding, layout, and inspection
- Made in the USA by Suburban Tool
Available with No Certification, Short Form, or Long Form Certification.
Specifications
| SINGLE or PAIR | SINGLE |
|---|---|
| SineSet ® SERIES | S1 |
| A | 6" |
| B | 6" |
| C | 4" |
| D | 1-1/4" |
| E | -- |
| F | -- |
| HOLES | (31) 1/4-20<br>(6) 5/16" x 7/16" C'BORE |
| Weight (lb) | 20 |
The AP-664-S1 is a 6" x 6" x 4" precision ground angle plate from Suburban Tool, machined solid and one-piece from hardened steel for accurate workholding on larger parts. As a SineSet® S1 series plate, it bolts directly to sine plates and compound sine plates of the same series for repeatable angle setups.
An array of tapped holes and counterbores lets you clamp and locate work securely for surface grinding, layout, and inspection.
- Solid one-piece hardened steel construction
- Ground square and parallel within 0.0002"
- SineSet® S1 series bolts directly to matching sine plates
- (31) 1/4-20 tapped holes plus counterbores for versatile setups
- Large faces ideal for grinding, layout, and inspection
- Made in the USA by Suburban Tool
Available with No Certification, Short Form, or Long Form Certification.
- Regular price
- $1,101.45
