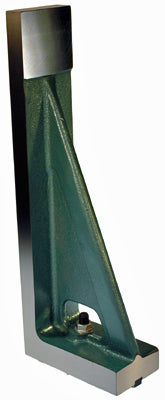

The Taft-Peirce 9201-G Ground Angle Iron from Suburban Tool is a precision right-angle fixture with ground surfaces for accurate, perpendicular workholding. Its ground faces give toolmakers a dependable reference for layout, inspection, and precise setup work.
- Precision-ground surfaces for a clean, accurate 90-degree reference
- Holds parts square through layout and machining operations
- Well suited to inspection setups and repeatable workholding on the surface plate
- A rigid, dependable fixture backed by the Taft-Peirce name and Suburban Tool quality
- Made in the USA by Suburban Tool
- Furnished with two precision 11/16" aligning keys and one T-bolt with nut.
- Narrow width offers convenient means of clamping where table room is at a minimum.
- Vertical face square to the base within 0.0002" per 12".
- Key slot square with the vertical face within 0.0002".
- Inside face parallel to the vertical face within 0.0002" on the 9201 model and 0.0003" on the 9202.
- Available in either a ground or scraped finish.
The Taft-Peirce 9201-G Ground Angle Iron from Suburban Tool is a precision right-angle fixture with ground surfaces for accurate, perpendicular workholding. Its ground faces give toolmakers a dependable reference for layout, inspection, and precise setup work.
- Precision-ground surfaces for a clean, accurate 90-degree reference
- Holds parts square through layout and machining operations
- Well suited to inspection setups and repeatable workholding on the surface plate
- A rigid, dependable fixture backed by the Taft-Peirce name and Suburban Tool quality
- Made in the USA by Suburban Tool
- Furnished with two precision 11/16" aligning keys and one T-bolt with nut.
- Narrow width offers convenient means of clamping where table room is at a minimum.
- Vertical face square to the base within 0.0002" per 12".
- Key slot square with the vertical face within 0.0002".
- Inside face parallel to the vertical face within 0.0002" on the 9201 model and 0.0003" on the 9202.
- Available in either a ground or scraped finish.
- Regular price
- $1,745.10
