Specifications
| A | 500mm |
|---|---|
| B | 2-1/4" |
| C | 36" |
| D | 8" |
| E | 500mm |
| F | 2" |
| G | 4.92" |
| H | 6.30" |
| Weight (lb) | 1078 |

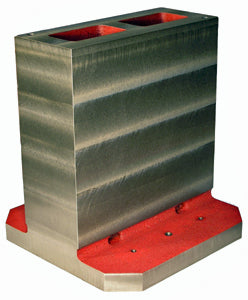

The Suburban Tool TSR-500836 is a 500mm x 8 x 36 rectangular column pallet fixture built tall to give horizontal machining centers extra vertical real estate for mounting vises, fixtures, and sub-plates. Cast in one piece from stress-relieved class 40 cast iron, it stays rigid and stable even when fully loaded on a 4th-axis pallet.
- One-piece, stress-relieved class 40 cast iron for rigidity under heavy workholding.
- Base and sides milled flat, parallel and square to 0.001" in 12".
- DIN mounting standard, JIS mounting optional.
- Available plain milled or custom made with your own hole pattern; other materials on request.
- 5/8"-11" tapped lifting holes standard for safe handling of the casting.
- Drawn from Suburban Tool's large stock of standard-size castings.
- Made in the USA by Suburban Tool
- Regular price
- $6,902.75
Specifications
| A | 500mm |
|---|---|
| B | 2-1/4" |
| C | 36" |
| D | 8" |
| E | 500mm |
| F | 2" |
| G | 4.92" |
| H | 6.30" |
| Weight (lb) | 1078 |
The Suburban Tool TSR-500836 is a 500mm x 8 x 36 rectangular column pallet fixture built tall to give horizontal machining centers extra vertical real estate for mounting vises, fixtures, and sub-plates. Cast in one piece from stress-relieved class 40 cast iron, it stays rigid and stable even when fully loaded on a 4th-axis pallet.
- One-piece, stress-relieved class 40 cast iron for rigidity under heavy workholding.
- Base and sides milled flat, parallel and square to 0.001" in 12".
- DIN mounting standard, JIS mounting optional.
- Available plain milled or custom made with your own hole pattern; other materials on request.
- 5/8"-11" tapped lifting holes standard for safe handling of the casting.
- Drawn from Suburban Tool's large stock of standard-size castings.
- Made in the USA by Suburban Tool
Contact for Pricing
