Specifications
| A | 500mm |
|---|---|
| B | 2-1/4" |
| C | 22" |
| D | 7.87" |
| E | 500mm |
| F | 2-1/4" |
| G | 4.92" |
| H | 4.92" |
| Weight (lb) | 840 |

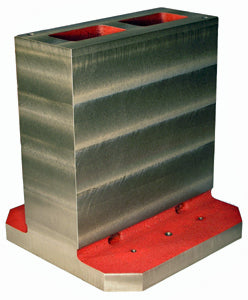

The Suburban Tool TSR-5 is a 500mm x 7.87 x 22 rectangular column pallet fixture that provides a solid, flat-faced base for mounting vises, fixtures, and sub-plates on horizontal machining centers. Its one-piece, stress-relieved class 40 cast iron body delivers the rigidity needed to hold accurate setups through aggressive cuts.
- One-piece, stress-relieved class 40 cast iron for stable, vibration-damping workholding.
- Base and sides milled flat, parallel and square to 0.001" in 12".
- DIN mounting standard, JIS mounting optional.
- Available plain milled or custom made with your own hole pattern; other materials on request.
- 5/8"-11" tapped lifting holes standard for safe handling.
- Backed by Suburban Tool's large inventory of in-stock standard castings.
- Made in the USA by Suburban Tool
- Regular price
- $5,655.82
Specifications
| A | 500mm |
|---|---|
| B | 2-1/4" |
| C | 22" |
| D | 7.87" |
| E | 500mm |
| F | 2-1/4" |
| G | 4.92" |
| H | 4.92" |
| Weight (lb) | 840 |
The Suburban Tool TSR-5 is a 500mm x 7.87 x 22 rectangular column pallet fixture that provides a solid, flat-faced base for mounting vises, fixtures, and sub-plates on horizontal machining centers. Its one-piece, stress-relieved class 40 cast iron body delivers the rigidity needed to hold accurate setups through aggressive cuts.
- One-piece, stress-relieved class 40 cast iron for stable, vibration-damping workholding.
- Base and sides milled flat, parallel and square to 0.001" in 12".
- DIN mounting standard, JIS mounting optional.
- Available plain milled or custom made with your own hole pattern; other materials on request.
- 5/8"-11" tapped lifting holes standard for safe handling.
- Backed by Suburban Tool's large inventory of in-stock standard castings.
- Made in the USA by Suburban Tool
Contact for Pricing
