Specifications
| A | 500mm |
|---|---|
| B | 2" |
| C | 18" |
| D | 3" |
| E | 7.87" |
| F | 9-1/4" |
| G | 12-3/4" |
| Weight (lb) | 355 |

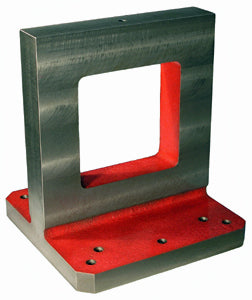

The Suburban Tool TSW-3 is a 500mm x 3 x 18 window type pallet fixture designed to open up front and back machining of a part in a single setup. The through-window layout lets tools reach both sides of the workpiece, cutting handling and improving concentricity on horizontal machining centers.
- Window design allows front and back machining of parts with one clamping.
- One-piece, stress-relieved class 40 cast iron for rigid, stable workholding.
- Base and sides milled flat, parallel and square to 0.001" in 12".
- DIN mounting standard, JIS mounting optional.
- 5/8"-11" tapped lifting holes standard for safe handling.
- Backed by Suburban Tool's large inventory of standard-size castings, ready to machine.
- Made in the USA by Suburban Tool
Specifications
| A | 500mm |
|---|---|
| B | 2" |
| C | 18" |
| D | 3" |
| E | 7.87" |
| F | 9-1/4" |
| G | 12-3/4" |
| Weight (lb) | 355 |
The Suburban Tool TSW-3 is a 500mm x 3 x 18 window type pallet fixture designed to open up front and back machining of a part in a single setup. The through-window layout lets tools reach both sides of the workpiece, cutting handling and improving concentricity on horizontal machining centers.
- Window design allows front and back machining of parts with one clamping.
- One-piece, stress-relieved class 40 cast iron for rigid, stable workholding.
- Base and sides milled flat, parallel and square to 0.001" in 12".
- DIN mounting standard, JIS mounting optional.
- 5/8"-11" tapped lifting holes standard for safe handling.
- Backed by Suburban Tool's large inventory of standard-size castings, ready to machine.
- Made in the USA by Suburban Tool
