Specifications
| A | 400mm |
|---|---|
| B | 2-1/4" |
| C | 36" |
| D | 6" |
| E | 400mm |
| F | 1-1/2" |
| G | 4.92" |
| H | 6.30" |
| Weight (lb) | 818 |

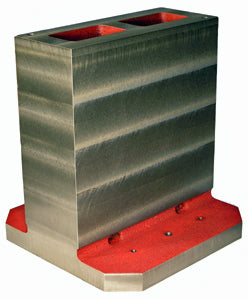

The TSR-400636 400mm x 6 x 36 Rectangular Column Pallet Fixture from Suburban Tool provides a solid, rigid base for mounting vises, fixtures, or sub-plates on your horizontal machining center. This rectangular column tombstone measures 400mm with a 36" column height and a 6" wall, delivering plenty of face area for multi-part workholding.
It is made from one-piece, stress-relieved class 40 cast iron for maximum stability under load.
- Rectangular column offers flat faces for vises, fixtures, and sub-plates.
- One-piece, stress-relieved class 40 cast iron for rigid, stable fixturing.
- Base and sides milled flat, parallel, and square to 0.001" in 12".
- DIN mounting standard, JIS mounting optional.
- 5/8"-11 tapped lifting holes for safe handling.
- Made in the USA by Suburban Tool
- Regular price
- $5,416.58
Specifications
| A | 400mm |
|---|---|
| B | 2-1/4" |
| C | 36" |
| D | 6" |
| E | 400mm |
| F | 1-1/2" |
| G | 4.92" |
| H | 6.30" |
| Weight (lb) | 818 |
The TSR-400636 400mm x 6 x 36 Rectangular Column Pallet Fixture from Suburban Tool provides a solid, rigid base for mounting vises, fixtures, or sub-plates on your horizontal machining center. This rectangular column tombstone measures 400mm with a 36" column height and a 6" wall, delivering plenty of face area for multi-part workholding.
It is made from one-piece, stress-relieved class 40 cast iron for maximum stability under load.
- Rectangular column offers flat faces for vises, fixtures, and sub-plates.
- One-piece, stress-relieved class 40 cast iron for rigid, stable fixturing.
- Base and sides milled flat, parallel, and square to 0.001" in 12".
- DIN mounting standard, JIS mounting optional.
- 5/8"-11 tapped lifting holes for safe handling.
- Made in the USA by Suburban Tool
Contact for Pricing
