Specifications
| MEASURES | 48-1/2" long x 22-1/4" wide x 34" high |
|---|---|
| Weight (lb) | 218 |

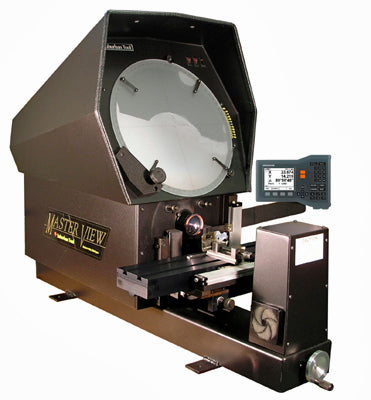

The Suburban Tool MV-14-H is a 14" optical comparator equipped with the Heidenhain ND123 3-axis digital readout with geometric functions, enabling direct measurement of points, lines and circles with a graphic display of results. Its high-capacity 4" x 8" travel stage and 4-1/2" x 19" work surface, combined with ball-way construction, handle loads to 100 lbs.
Built for demanding inspection and QC work, the MV-14-H from Suburban Tool delivers bright, clear imaging for accurate profile and surface measurement.
- Heidenhain ND123 3-axis DRO with geometric measuring functions
- Direct measurement of points, lines and circles with graphic display
- 4" x 8" travel stage on a 4-1/2" x 19" work surface
- Ball-way construction handles loads to 100 lbs
- Duplex fiber-optic surface illumination with two tungsten-halogen sources
- Rotary frosted glass screen with 90° crosslines and 360° protractor
- Made in the USA by Suburban Tool
- Large LCD screen.
- Type B USB data interface.
- Entry of tolerances.
- 360° digital protractor.
- 1 micron glass scales.
- Display reads to 0.0001".
- Individual switches select profile, surface or combination surface-profile illumination modes.
- Heavy-duty monorail type formed welded steel frame.
- Screen-mounted overlay chart clips.
- 10 power lens system.
- Regular price
- $9,434.25
