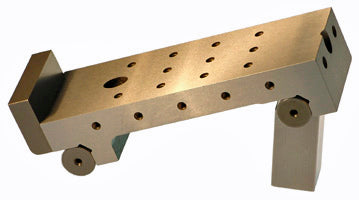

The 9118-10 Taft-Peirce Sine Plate provides a 4" x 11-5/8" working surface and is manufactured by Suburban Tool for precise angle setup in the toolroom and on the surface grinder. Using gage blocks and the sine principle, this plate lets machinists lock in exact angles for grinding, layout, and inspection of longer precision workpieces.
- 4" x 11-5/8" surface handles longer parts and setups
- Sets accurate angles from gage blocks every time
- Durable Taft-Peirce build for consistent, repeatable results
- Ideal for surface grinding, layout, and inspection
- Precision sine tooling from Suburban Tool
- Made in the USA by Suburban Tool
- All sizes furnished in a finished wood case.
- Top surface precision-ground, flat and square with sides, and parallel to sine rolls.
- The rolls are ground and lapped alike for diameter, roundness and straightness, and parallel to each other within the limits specified below.
- Precision-ground end plate acts as a work-positioning stop.
- Tapped holes in the top surface and sides allow a wide variety of work-clamping set-ups.
- Regular price
- $4,824.75
