files/T-SLOT-2_20T-Slotted_20Square_20Column_20Pallet_20Fixture_6172d493-f3be-4b1c-b20c-3395c0dcbe71.jpg
-
files/T-SLOT-DWG_20Suburban_20Tool_20T-Slotted_20Square_20Column_20Tombstone_20Fixture_20Drawing_5cda8cc7-b817-4eb3-ba6e-bb9bb9c89679.jpg

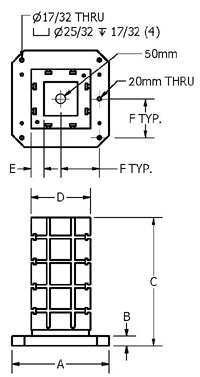

Specifications
| A | 500mm |
|---|---|
| B | 2" |
| C | 26" |
| D | 12" |
| E | 2" |
| F | 7.87" |
| Weight (lb) | 625 |
The T-SLOT-2 is a 500mm T-slot tombstone / pallet fixture from Suburban Tool, providing a rigid base for mounting vises, fixtures, or sub-plates on horizontal machining centers. Made from one-piece, stress-relieved class 40 cast iron, it brings the mass and stability that high-productivity workholding requires.
Suburban Tool machines these standard castings ready for your fixturing needs.
- Base and sides milled flat, parallel, and square to 0.001" in 12"
- One-piece, stress-relieved class 40 cast iron
- T-slots on a 5" pattern for standard workholding devices
- DIN mounting standard, JIS mounting optional
- Tapped 5/8"-11 lifting holes and coolant drain holes included
- Made in the USA by Suburban Tool
- Other materials available on request.
- Regular price
- $9,825.00
Specifications
| A | 500mm |
|---|---|
| B | 2" |
| C | 26" |
| D | 12" |
| E | 2" |
| F | 7.87" |
| Weight (lb) | 625 |
The T-SLOT-2 is a 500mm T-slot tombstone / pallet fixture from Suburban Tool, providing a rigid base for mounting vises, fixtures, or sub-plates on horizontal machining centers. Made from one-piece, stress-relieved class 40 cast iron, it brings the mass and stability that high-productivity workholding requires.
Suburban Tool machines these standard castings ready for your fixturing needs.
- Base and sides milled flat, parallel, and square to 0.001" in 12"
- One-piece, stress-relieved class 40 cast iron
- T-slots on a 5" pattern for standard workholding devices
- DIN mounting standard, JIS mounting optional
- Tapped 5/8"-11 lifting holes and coolant drain holes included
- Made in the USA by Suburban Tool
- Other materials available on request.
Contact for Pricing
