Specifications
| SineSet ® SERIES | S1 |
|---|---|
| COLLET CAPACITY | ALL 5C |
| V-BLOCK CAPACITY | 1-5/8" |
| THRU HOLE | 1-1/4" |
| C | 3" |
| L1 | 8-15/16" |
| L2 | 5-3/16" |
| W | 5" |
| H | 5-1/2" |
| SQUARE & PARALLEL | 0.0002" |
| Weight (lb) | 32 |

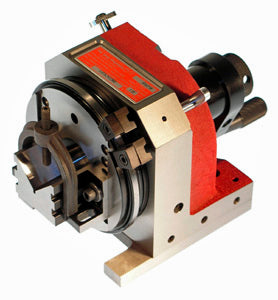

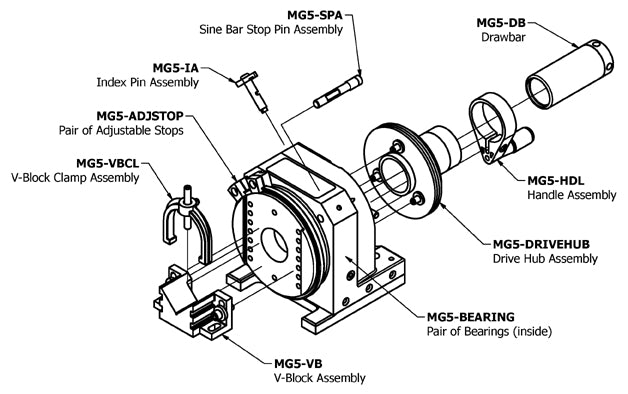

The Suburban Tool MG-5CV-S1 Master-Grind Index Fixture puts a 5C collet and a v-block in one S1-series spin fixture, accepting all standard 5C collets with a 1-5/8" v-block capacity and a 1-1/4" through hole for versatile toolroom grinding.
A 72-position index plate provides a hard stop every 5° ±15 arc seconds, with a built-in 2-1/2" sine bar for angles in between. The spindle runs in two heavy-duty 4" diameter tapered roller bearings for a maximum spindle runout of 0.00005". It bolts directly to a SineSet sine plate or compound sine plate of the S1 series, and supports horizontal or vertical v-block mounting.
- 5C collet and v-block in one fixture
- 72-position hard stop every 5° ±15 arc seconds
- Built-in 2-1/2" sine bar for in-between angles
- Two heavy-duty 4" tapered roller bearings, 0.00005" runout
- Bolts to SineSet S1-series sine and compound sine plates
- Horizontal or vertical v-block mounting
- Made in the USA by Suburban Tool
- Includes mounting bracket, motor pulley, drive belt & screws.
- Includes a fitted wooden case.
- Regular price
- $5,507.25
