Specifications
| SineSet ® SERIES | S2 |
|---|---|
| L | 18" |
| W | 6" |
| H | 6-5/8" |
| C | 15" ±0.0003" |
| SQUARE & PARALLEL | 0.0004" |
| WATTS | 110 |
| Weight (lb) | 201 |

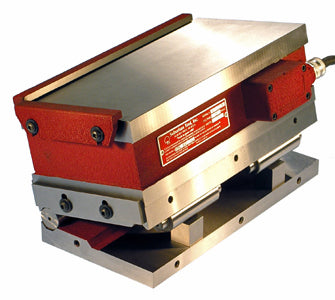

The ESP-186-L-S2 Electromagnetic Sine Plate, 6" x 18", unites a longitudinal (lengthwise) pole electromagnetic chuck with a precision sine plate from Suburban Tool's SineSet series. The extra 18" length and lengthwise pole layout hold longer parts fast for compound-angle grinding, inspection, and layout.
The chuck is sealed against dirt and liquids for dependable toolroom service.
- Sine plate and electromagnetic chuck can be used together or independently
- Chuck removes or replaces quickly using only four bolts
- Two self-storing, hardened and ground rails for the sine plate, plus two side rails for the chuck
- Gage block rolls provide dual 0.200" minute steps for setting small angles with standard gage blocks
- Angular accuracy guaranteed within 5 seconds of arc up to 15 degrees, 10 seconds up to 30 degrees, and 15 seconds up to 45 degrees
- Made in the USA by Suburban Tool
- Longitudinal (lengthwise) or transverse (crosswise) poles are available, based on the size & shape of the part to be held.
- Chuck controls must be used with all electromagnetic chucks!.
Available with No Certification, Short Form, or Long Form Certification.
- Regular price
- $10,314.15
Specifications
| SineSet ® SERIES | S2 |
|---|---|
| L | 18" |
| W | 6" |
| H | 6-5/8" |
| C | 15" ±0.0003" |
| SQUARE & PARALLEL | 0.0004" |
| WATTS | 110 |
| Weight (lb) | 201 |
The ESP-186-L-S2 Electromagnetic Sine Plate, 6" x 18", unites a longitudinal (lengthwise) pole electromagnetic chuck with a precision sine plate from Suburban Tool's SineSet series. The extra 18" length and lengthwise pole layout hold longer parts fast for compound-angle grinding, inspection, and layout.
The chuck is sealed against dirt and liquids for dependable toolroom service.
- Sine plate and electromagnetic chuck can be used together or independently
- Chuck removes or replaces quickly using only four bolts
- Two self-storing, hardened and ground rails for the sine plate, plus two side rails for the chuck
- Gage block rolls provide dual 0.200" minute steps for setting small angles with standard gage blocks
- Angular accuracy guaranteed within 5 seconds of arc up to 15 degrees, 10 seconds up to 30 degrees, and 15 seconds up to 45 degrees
- Made in the USA by Suburban Tool
- Longitudinal (lengthwise) or transverse (crosswise) poles are available, based on the size & shape of the part to be held.
- Chuck controls must be used with all electromagnetic chucks!.
Available with No Certification, Short Form, or Long Form Certification.
- Regular price
- $10,314.15
