Specifications
| SineSet ® SERIES | S2 |
|---|---|
| L | 12" |
| W | 6" |
| H | 5-7/8" |
| C | 10" ±0.0002" |
| SQUARE & PARALLEL | 0.0003" |
| WATTS | 56 |
| Weight (lb) | 120 |

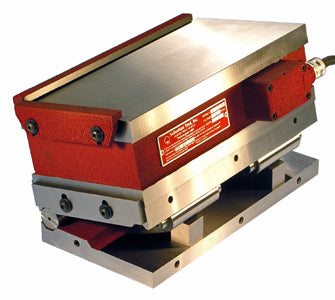

The ESP-126-L-S2 Electromagnetic Sine Plate, 6" x 12", pairs a longitudinal (lengthwise) pole electromagnetic chuck with a precision sine plate in one compact toolroom setup from Suburban Tool's SineSet series. The lengthwise pole layout suits parts oriented along the 12" length, holding them fast for accurate angle work.
Sealed against dirt and liquids, this unit lets machinists grind, inspect, and lay out compound angles with confidence.
- Sine plate and electromagnetic chuck work together or independently for versatile surface grinding and layout
- Chuck removes or replaces quickly using only four bolts
- Two self-storing, hardened and ground rails included for the sine plate, plus two side rails for the chuck
- Gage block rolls provide dual 0.200" minute steps for setting small angles with standard gage blocks
- Angular accuracy guaranteed within 5 seconds of arc up to 15 degrees, 10 seconds up to 30 degrees, and 15 seconds up to 45 degrees
- Made in the USA by Suburban Tool
- Longitudinal (lengthwise) or transverse (crosswise) poles are available, based on the size & shape of the part to be held.
- Chuck controls must be used with all electromagnetic chucks!.
Available with No Certification, Short Form, or Long Form Certification.
- Regular price
- $6,361.95
Specifications
| SineSet ® SERIES | S2 |
|---|---|
| L | 12" |
| W | 6" |
| H | 5-7/8" |
| C | 10" ±0.0002" |
| SQUARE & PARALLEL | 0.0003" |
| WATTS | 56 |
| Weight (lb) | 120 |
The ESP-126-L-S2 Electromagnetic Sine Plate, 6" x 12", pairs a longitudinal (lengthwise) pole electromagnetic chuck with a precision sine plate in one compact toolroom setup from Suburban Tool's SineSet series. The lengthwise pole layout suits parts oriented along the 12" length, holding them fast for accurate angle work.
Sealed against dirt and liquids, this unit lets machinists grind, inspect, and lay out compound angles with confidence.
- Sine plate and electromagnetic chuck work together or independently for versatile surface grinding and layout
- Chuck removes or replaces quickly using only four bolts
- Two self-storing, hardened and ground rails included for the sine plate, plus two side rails for the chuck
- Gage block rolls provide dual 0.200" minute steps for setting small angles with standard gage blocks
- Angular accuracy guaranteed within 5 seconds of arc up to 15 degrees, 10 seconds up to 30 degrees, and 15 seconds up to 45 degrees
- Made in the USA by Suburban Tool
- Longitudinal (lengthwise) or transverse (crosswise) poles are available, based on the size & shape of the part to be held.
- Chuck controls must be used with all electromagnetic chucks!.
Available with No Certification, Short Form, or Long Form Certification.
- Regular price
- $6,361.95
