Specifications
| MEASURES | 48-1/2" long x 22-1/4" wide x 34" high |
|---|---|
| Weight (lb) | 215 |

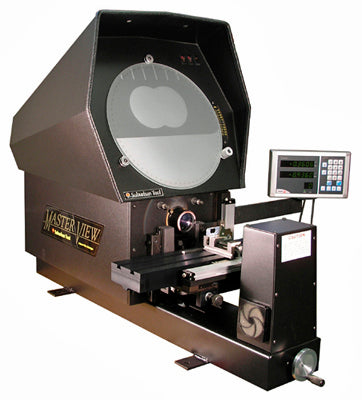

The Suburban Tool MV-14-P is a 14" Master-View optical comparator fitted with the Fagor NV-20 2-axis digital readout and surface illumination through duplex fiber optics. Measuring 48-1/2" x 22-1/4" x 34", it delivers dependable profile and surface inspection for the toolroom and QC bench.
Its high-capacity stage and rigid frame make it a workhorse for first-article checks, layout, and in-process measurement.
- Fagor NV-20 2-axis digital readout for clear position measurement
- High-capacity 4" x 8" travel stage with 4-1/2" x 19" work surface; ball-way construction handles loads to 100 lbs
- Two long-life tungsten-halogen sources with bright surface illumination through duplex fiber optics
- Individual switches select profile, surface, or combination illumination modes
- Rotary frosted glass screen with 90° crosslines and 360° protractor, vernier readings to 5 minutes of arc
- Heavy-duty monorail-type welded steel frame
- Made in the USA by Suburban Tool
- Linear compensation.
- Inch-mm conversion.
- Absolute-incremental switch.
- Display reads to 0.0005".
- 5 micron glass scales.
- Heavy-duty monorail type formed welded steel frame.
- 10 power lens system.
- Clip-on overlay chart clips.
Specifications
| MEASURES | 48-1/2" long x 22-1/4" wide x 34" high |
|---|---|
| Weight (lb) | 215 |
The Suburban Tool MV-14-P is a 14" Master-View optical comparator fitted with the Fagor NV-20 2-axis digital readout and surface illumination through duplex fiber optics. Measuring 48-1/2" x 22-1/4" x 34", it delivers dependable profile and surface inspection for the toolroom and QC bench.
Its high-capacity stage and rigid frame make it a workhorse for first-article checks, layout, and in-process measurement.
- Fagor NV-20 2-axis digital readout for clear position measurement
- High-capacity 4" x 8" travel stage with 4-1/2" x 19" work surface; ball-way construction handles loads to 100 lbs
- Two long-life tungsten-halogen sources with bright surface illumination through duplex fiber optics
- Individual switches select profile, surface, or combination illumination modes
- Rotary frosted glass screen with 90° crosslines and 360° protractor, vernier readings to 5 minutes of arc
- Heavy-duty monorail-type welded steel frame
- Made in the USA by Suburban Tool
- Linear compensation.
- Inch-mm conversion.
- Absolute-incremental switch.
- Display reads to 0.0005".
- 5 micron glass scales.
- Heavy-duty monorail type formed welded steel frame.
- 10 power lens system.
- Clip-on overlay chart clips.
- Regular price
- $10,640.70
