Specifications
| MEASURES | 48-1/2" long x 22-1/4" wide x 34" high |
|---|---|
| Weight (lb) | 215 |

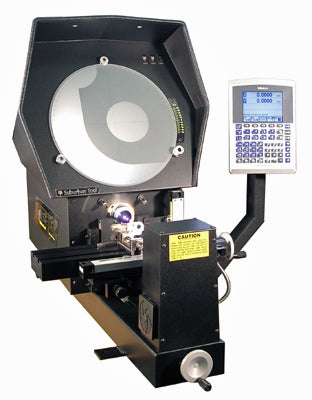

The Suburban Tool MV-14-M is a 14" Master-View optical comparator equipped with the Mitutoyo QM Data-200 3-axis digital readout, fiber-optic edge detection, and a 360-degree digital protractor. Measuring 48-1/2" x 22-1/4" x 34", it's a full-featured inspection machine for demanding QC and toolroom work.
Direct DRO measurement of points, lines, circles, and slots takes the guesswork out of dimensional inspection, and results export to a spreadsheet in CSV format through the RS232 port.
- Mitutoyo QM Data-200 3-axis DRO with fiber-optic edge detection
- Direct measurement of points, lines, circles, and slots
- High-capacity 4" x 8" travel stage with 4-1/2" x 19" work surface; ball-way construction handles loads to 100 lbs
- Two long-life tungsten-halogen sources with extra-bright surface illumination through duplex fiber optics
- Rotary frosted glass screen with 90° crosslines and 360° protractor, vernier readings to 5 minutes of arc
- Heavy-duty monorail-type welded steel frame
- Made in the USA by Suburban Tool
- Large LCD screen.
- Printer interface.
- Inch-mm conversion.
- 5 micron glass scales.
- Display reads to 0.0001".
- Individual switches select profile, surface or combination surface-profile illumination modes.
- Heavy-duty monorail type formed welded steel frame.
- Clip-on overlay chart clips.
- 10 power lens system.
Specifications
| MEASURES | 48-1/2" long x 22-1/4" wide x 34" high |
|---|---|
| Weight (lb) | 215 |
The Suburban Tool MV-14-M is a 14" Master-View optical comparator equipped with the Mitutoyo QM Data-200 3-axis digital readout, fiber-optic edge detection, and a 360-degree digital protractor. Measuring 48-1/2" x 22-1/4" x 34", it's a full-featured inspection machine for demanding QC and toolroom work.
Direct DRO measurement of points, lines, circles, and slots takes the guesswork out of dimensional inspection, and results export to a spreadsheet in CSV format through the RS232 port.
- Mitutoyo QM Data-200 3-axis DRO with fiber-optic edge detection
- Direct measurement of points, lines, circles, and slots
- High-capacity 4" x 8" travel stage with 4-1/2" x 19" work surface; ball-way construction handles loads to 100 lbs
- Two long-life tungsten-halogen sources with extra-bright surface illumination through duplex fiber optics
- Rotary frosted glass screen with 90° crosslines and 360° protractor, vernier readings to 5 minutes of arc
- Heavy-duty monorail-type welded steel frame
- Made in the USA by Suburban Tool
- Large LCD screen.
- Printer interface.
- Inch-mm conversion.
- 5 micron glass scales.
- Display reads to 0.0001".
- Individual switches select profile, surface or combination surface-profile illumination modes.
- Heavy-duty monorail type formed welded steel frame.
- Clip-on overlay chart clips.
- 10 power lens system.
- Regular price
- $16,720.20
