Specifications
| L | 18-1/4" |
|---|---|
| W | 6-3/4" |
| H | 5-3/4" |
| C1 | 15" ±0.0002" |
| C2 | 5" ±0.0002" |
| SQUARE & PARALLEL | 0.0004" |
| Weight (lb) | 145 |

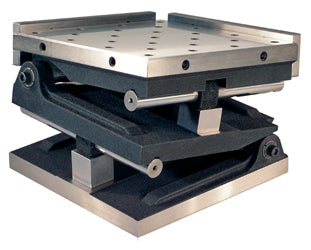

The Suburban Tool A-15-SP is a 6-3/4" x 18-1/4" compound sine plate from the Master-Sine series, a sturdy, accurate way to grind or measure compound angles in the toolroom and QC lab.
The A-15-SP uses 5/16-18 tapped holes for versatile, secure workholding.
- Made of steel, hardened to Rc 58-60.
- Angular accuracy of set-ups is guaranteed within 5 seconds of arc up to 15 degrees, 10 seconds up to 30 degrees and 15 seconds up to 45 degrees.
- Roll bar is hardened steel, ground and lapped for straightness and roundness.
- Swivel block provides full face contact with gage blocks, keeping them securely in place.
- Exclusive hinge-roll locking device pulls the top plate down on the gage blocks without distortion.
- Made in the USA by Suburban Tool
- Side and back rail included.
Available with No Certification, Short Form, or Long Form Certification.
- Regular price
- $18,226.95
Specifications
| L | 18-1/4" |
|---|---|
| W | 6-3/4" |
| H | 5-3/4" |
| C1 | 15" ±0.0002" |
| C2 | 5" ±0.0002" |
| SQUARE & PARALLEL | 0.0004" |
| Weight (lb) | 145 |
The Suburban Tool A-15-SP is a 6-3/4" x 18-1/4" compound sine plate from the Master-Sine series, a sturdy, accurate way to grind or measure compound angles in the toolroom and QC lab.
The A-15-SP uses 5/16-18 tapped holes for versatile, secure workholding.
- Made of steel, hardened to Rc 58-60.
- Angular accuracy of set-ups is guaranteed within 5 seconds of arc up to 15 degrees, 10 seconds up to 30 degrees and 15 seconds up to 45 degrees.
- Roll bar is hardened steel, ground and lapped for straightness and roundness.
- Swivel block provides full face contact with gage blocks, keeping them securely in place.
- Exclusive hinge-roll locking device pulls the top plate down on the gage blocks without distortion.
- Made in the USA by Suburban Tool
- Side and back rail included.
Available with No Certification, Short Form, or Long Form Certification.
- Regular price
- $18,226.95
